Variable Camshaft Timing 21 Solenoid Connector - C1610

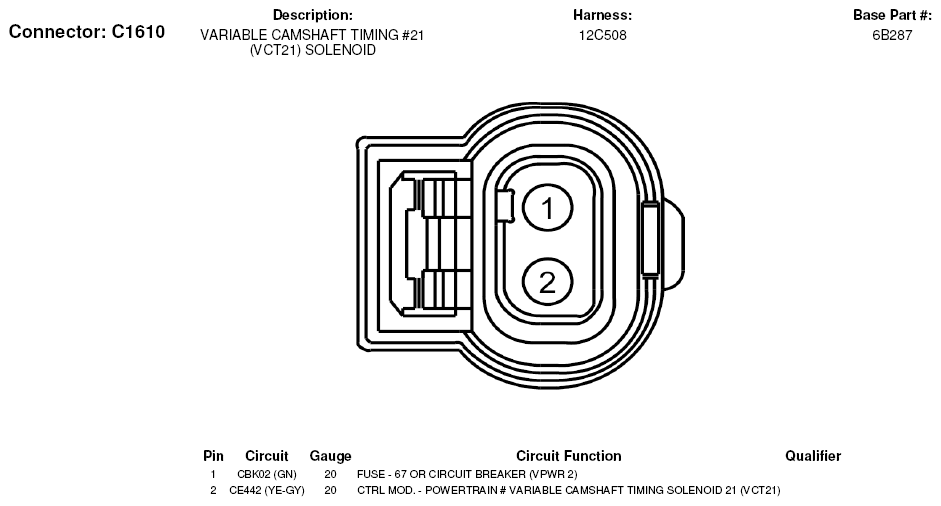

Fig 1: Variable Camshaft Timing 21 Solenoid Connector End View (C1610)
G07327170Courtesy of FORD MOTOR CO.
