Turn Signal_Stop_Hazard Lamps: MKX

Fig 1: Turn Signal_Stop_Hazard Lamps Circuit Diagram - MKX (1 Of 2)
G07854762Courtesy of FORD MOTOR CO.

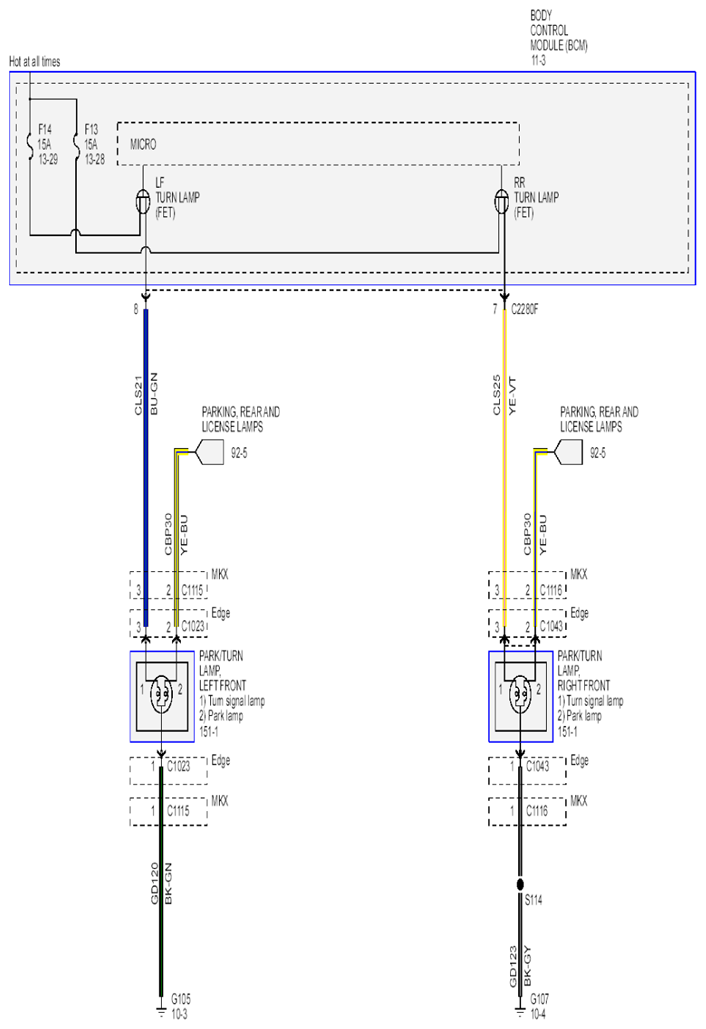

Fig 2: Turn Signal_Stop_Hazard Lamps Circuit Diagram - MKX (2 Of 2)
G07854763Courtesy of FORD MOTOR CO.
