F9, F18, F19, F20, F21, F26, F27, F50

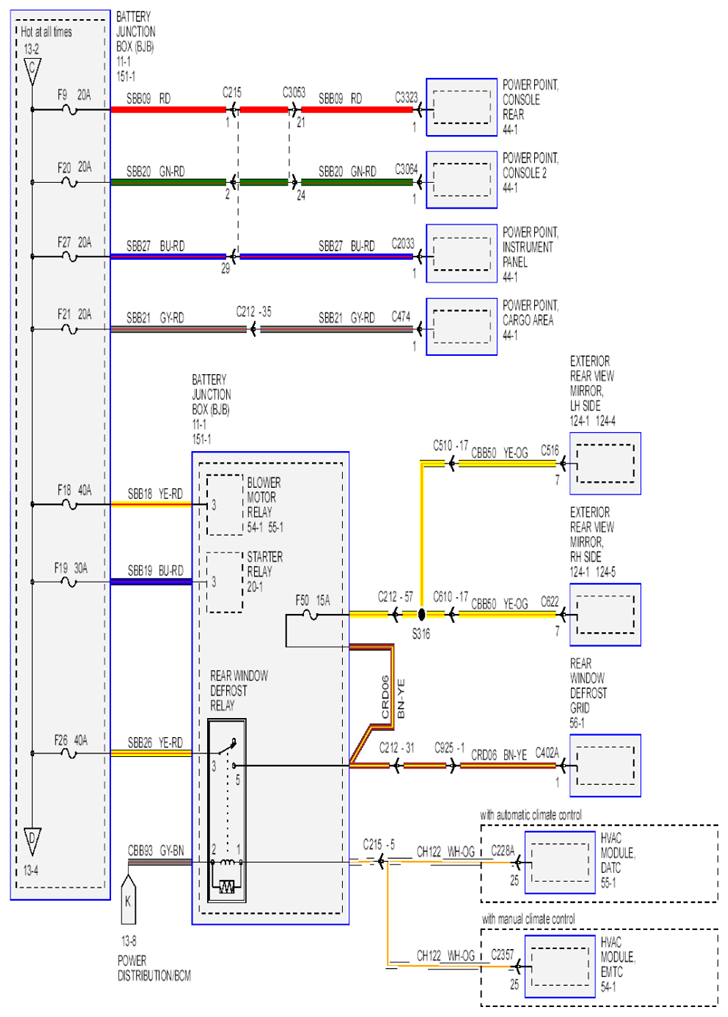

Fig 1: Power Distribution Circuit Diagram - F9, F18, F19, F20, F21, F26, F27, F50

G07854642

Courtesy of FORD MOTOR CO.
