With Ambient Lighting - Edge

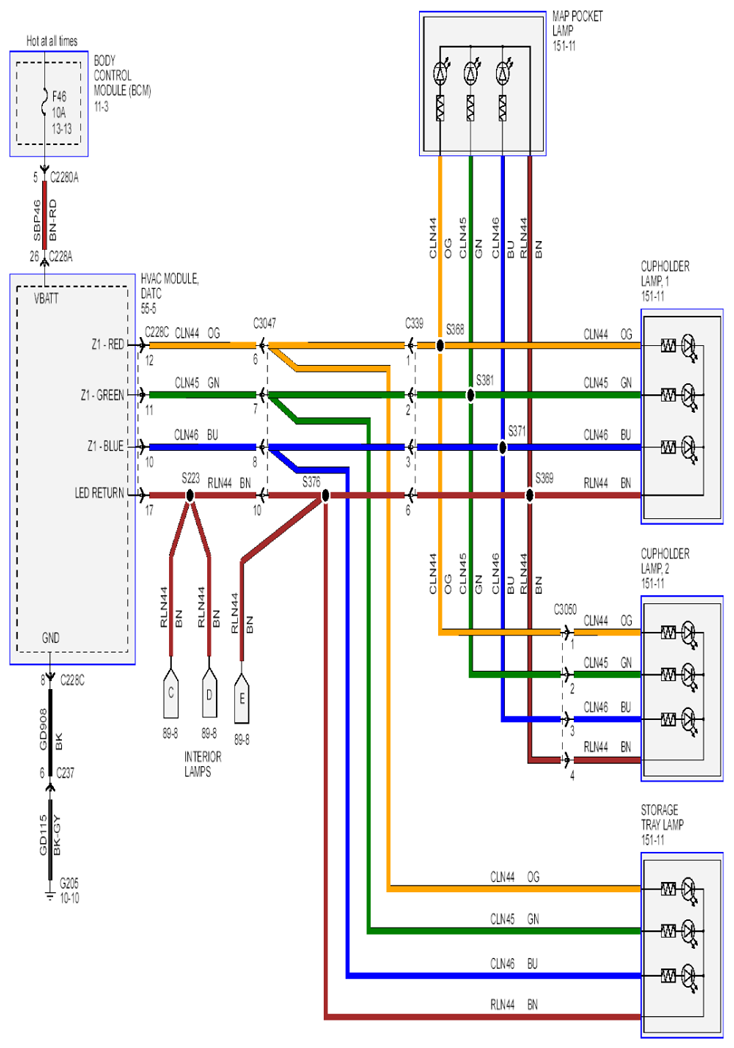

Fig 1: Interior Lamps Circuit Diagram (With Ambient Lighting - Edge)
G07854753Courtesy of FORD MOTOR CO.

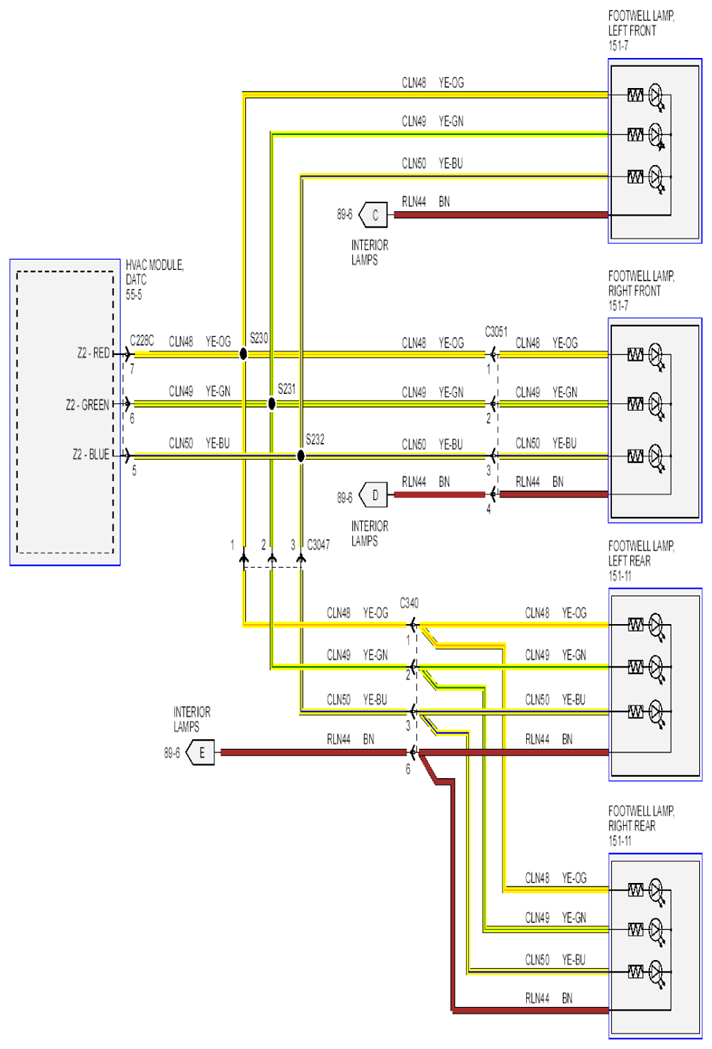

Fig 1: Interior Lamps Circuit Diagram (With Ambient Lighting - Edge)
G07854755Courtesy of FORD MOTOR CO.
