Cooling Fan
>>
With Trailer Tow
With Trailer Tow

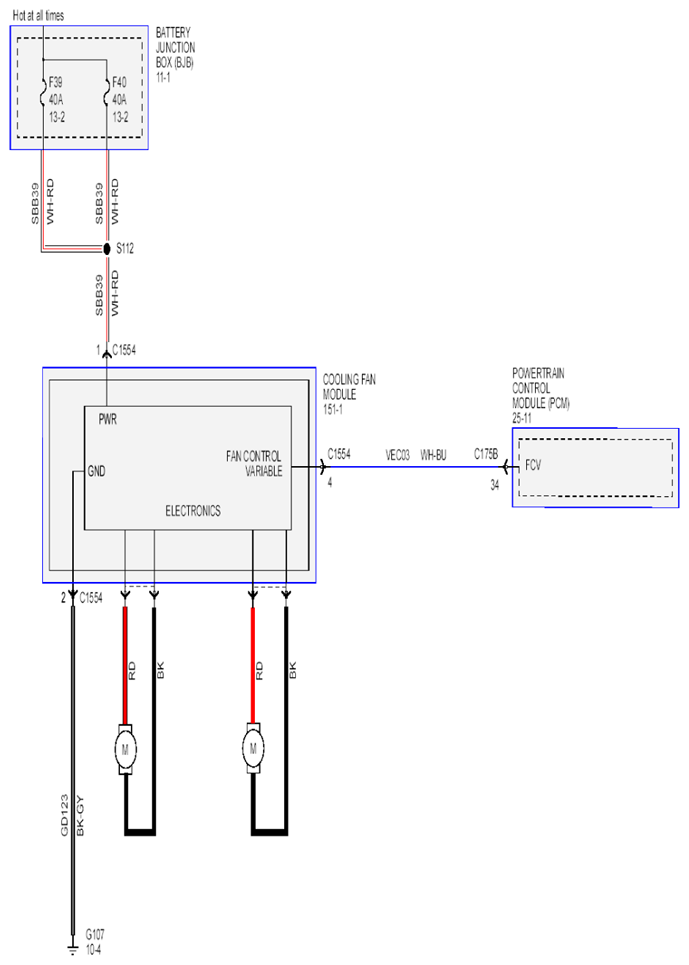

Fig 1: Cooling Fan Circuit Diagram - With Trailer Tow
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
