Cooling Fan
>>
W/O Trailer Tow
W/O Trailer Tow

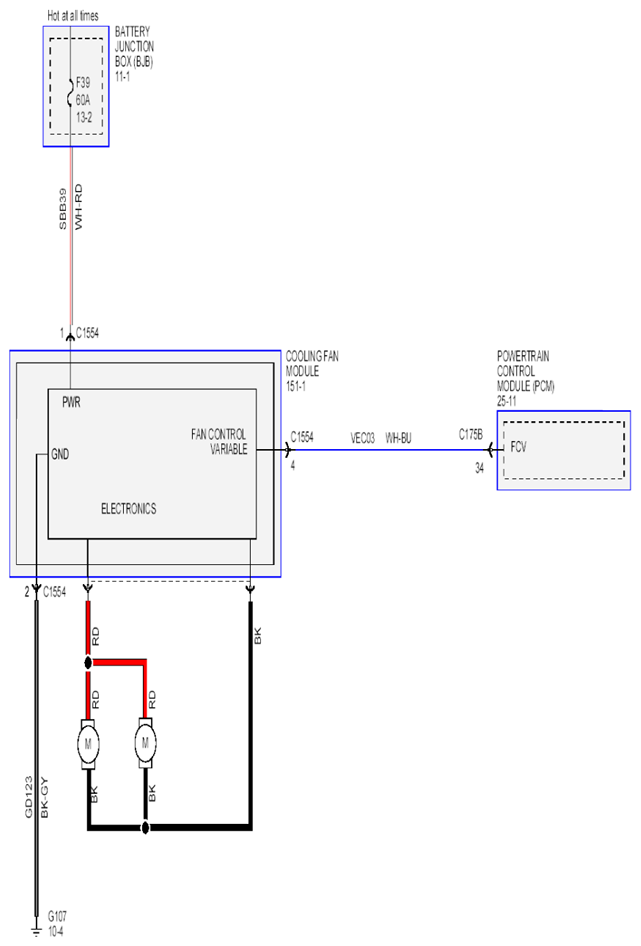

Fig 1: Cooling Fan Circuit Diagram - W/O Trailer Tow
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
