Evaporative Emissions Canister Vent Solenoid Connector - C377
Evaporative Emissions Canister Vent Solenoid Connector - C377

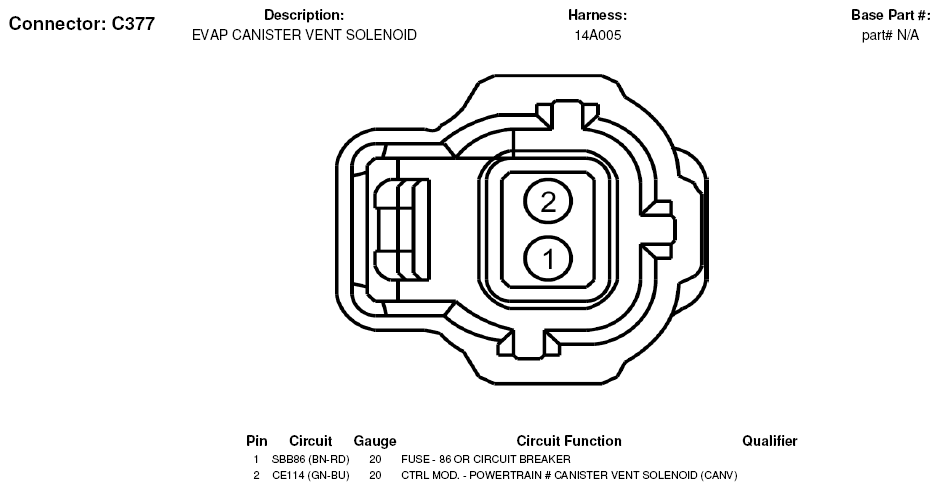

Fig 1: Evaporative Emissions Canister Vent Solenoid Connector End View (C377)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
