PINPOINT TEST D: DTCs C0031:01; C0034:01; C0037:01, C003A:01, C0031:19, C0034:19, C0037:19 AND C003A:19

NOTE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
  1. D1 CHECK FOR FAULT REPEATABILITY
    • Ignition ON.
    • Using a scan tool, clear all CMDTCs  .
    • Drive the vehicle at least 20 km/h (12 mph).
    • Bring the vehicle to a safe stop.
    • Enter the following diagnostic mode on the scan tool: Self-Test - ABS Module.
    • Is the DTC still present?
    1. Yes:  If the Rotunda Active Wheel Speed Sensor Tester is available, GO to D2  .

      If the Rotunda Active Wheel Speed Sensor Tester is not available, GO to  D4.

    2. No:  The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. TEST DRIVE the vehicle at least 20 km/h (12 mph). REPEAT the self-test.
  2. D2 CHECK THE ABS MODULE OUTPUT USING THE ROTUNDA ACTIVE WHEEL SPEED SENSOR TESTER
    • Ignition OFF.
    • Disconnect: Suspect Wheel Speed Sensor.
    • Connect the Rotunda Active Wheel Speed Sensor Tester to the wheel speed sensor connectors.
    • Ignition ON.
    • Select the correct system polarity on the Rotunda Active Wheel Speed Sensor Tester and turn the power switch to the ON position.
    • Is the tester output LED illuminated?
    1. Yes:  GO to D3  .
    2. No:  GO to  D6.
  3. D3 CHECK THE WHEEL SPEED SENSOR OUTPUT WITH THE ROTUNDA ACTIVE WHEEL SPEED SENSOR TESTER
    • Raise the suspect wheel until it can spin freely. Refer to JACKING AND LIFTING .
    • While monitoring the Rotunda Active Wheel Speed Sensor Tester, slowly spin the suspect wheel.
    • Do the sensor output LEDs illuminate and flash and is the current overload LED not illuminated?
    1. Yes:  The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. TEST DRIVE the vehicle at least 20 km/h (12 mph). REPEAT the self-test.
    2. No:  INSTALL a new wheel speed sensor. REFER to WHEEL SPEED SENSOR - FRONT  or WHEEL SPEED SENSOR - REAR . CLEAR the DTCs. TEST DRIVE the vehicle at least 20 km/h (12 mph). REPEAT the self-test.
  4. D4 CHECK FOR CORRECT ABS MODULE OUTPUT
    • Ignition OFF.
    • Disconnect: Suspect Wheel Speed Sensor.
    • Ignition ON.
    • For DTCs C0031:01 and 19  , measure the voltage between:
      • LF wheel speed sensor C150-2, circuit VCA03 (VT/WH), harness side and LF wheel speed sensor C150-1, circuit RCA17 (YE), harness side.
        Fig 1: Identifying Measuring Voltage Between LF Wheel Speed Sensor And LF Wheel Speed Sensor Connector End View
        G07397576Courtesy of FORD MOTOR CO.
    • For DTCs C0034:01 and 19  , measure the voltage between:
      • RF wheel speed sensor C160-1, circuit VCA05 (GY/VT), harness side and RF wheel speed sensor C160-2, circuit RCA19 (VT), harness side.
        Fig 2: Identifying Measuring Voltage Between RF Wheel Speed Sensor And RF Wheel Speed Sensor Connector End View
        G07397577Courtesy of FORD MOTOR CO.
    • For DTCs C0037:01 and 19  , measure the voltage between:
      • LR wheel speed sensor C440-1, circuit VCA04 (BU/OG), harness side and LR wheel speed sensor C440-2, circuit RCA18 (BN/GN), harness side.
        Fig 3: Identifying Measuring Voltage Between LR Wheel Speed Sensor And LR Wheel Speed Sensor Connector End View
        G07397578Courtesy of FORD MOTOR CO.
    • For DTCs C003A:01 and 19  , measure the voltage between:
      • RR wheel speed sensor C426-1, circuit VCA06 (WH/OG), harness side and RR wheel speed sensor C426-2, circuit RCA20 (BN), harness side.
        Fig 4: Identifying Measuring Voltage Between LR Wheel Speed Sensor And LR Wheel Speed Sensor Connector End View
        G07397578Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    1. Yes:  GO to D5  .
    2. No:  GO to  D6.
  5. D5 CHECK THE WHEEL SPEED SENSOR CIRCUITS FOR A SHORT TO BATTERY VOLTAGE
    • Ignition OFF.
    • Disconnect: ABS Module C135.
    • Ignition ON.
    • For LF sensor  , measure the voltage between:
      • ABS module C135-45, circuit VCA03 (VT/WH), harness side and ground.
      • ABS module C135-46, circuit RCA17 (YE), harness side and ground.
        Fig 5: Identifying Measuring Voltage Between ABS Module And Ground Connector End View
        G06938851Courtesy of FORD MOTOR CO.
    • For RF sensor  , measure the voltage between:
      • ABS module C135-33, circuit RCA19 (VT), harness side and ground.
      • ABS module C135-34, circuit VCA05 (GY/VT), harness side and ground.
        Fig 6: Identifying Measuring Voltage Between ABS Module And Ground Connector End View
        G06938852Courtesy of FORD MOTOR CO.
    • For LR sensor  , measure the voltage between:
      • ABS module C135-36, circuit VCA04 (BU/OG), harness side and ground.
      • ABS module C135-37, circuit RCA18 (BN/GN), harness side and ground.
        Fig 7: Identifying Measuring Voltage Between ABS Module And Ground Connector End View
        G07397582Courtesy of FORD MOTOR CO.
    • For RR sensor  , measure the voltage between:
      • ABS module C135-42, circuit RCA20 (BN), harness side and ground.
      • ABS module C135-43, circuit VCA06 (WH/OG), harness side and ground.
        Fig 8: Identifying Measuring Voltage Between ABS Module And Ground Connector End View
        G06938854Courtesy of FORD MOTOR CO.
    • Is any voltage present?
    1. Yes:  REPAIR the affected circuit (s) for a short to voltage. CLEAR the DTCs. TEST DRIVE the vehicle at least 20 km/h (12 mph). REPEAT the self-test.
    2. No:  INSTALL a new wheel speed sensor. REFER to WHEEL SPEED SENSOR - FRONT  or WHEEL SPEED SENSOR - REAR . CLEAR the DTCs. TEST DRIVE the vehicle at least 20 km/h (12 mph). REPEAT the self-test.
  6. D6 CHECK THE WHEEL SPEED SENSOR CIRCUITS FOR A SHORT TO GROUND
    • Ignition OFF.
    • Disconnect: ABS Module C135.
    • For LF sensor  , measure the resistance between:
      • ABS module C135-45, circuit VCA03 (VT/WH), harness side and ground.
      • ABS module C135-46, circuit RCA17 (YE), harness side and ground.
        Fig 9: Identifying Measuring Resistance Between ABS Module And Ground Connector End View
        G06938855Courtesy of FORD MOTOR CO.
    • For RF sensor  , measure the resistance between:
      • ABS module C135-34, circuit VCA05 (GY/VT), harness side and ground.
      • ABS module C135-33, circuit RCA19 (VT), harness side and ground.
        Fig 10: Identifying Measuring Resistance Between ABS Module And Ground Connector End View
        G06938856Courtesy of FORD MOTOR CO.
    • For LR sensor  , measure the resistance between:
      • ABS module C135-36, circuit VCA04 (BU/OG), harness side and ground.
      • ABS module C135-37, circuit RCA19 (BN/GN), harness side and ground.
        Fig 11: Identifying Measuring Resistance Between ABS And Ground Connector End View
        G06938857Courtesy of FORD MOTOR CO.
    • For RR sensor  , measure the resistance between:
      • ABS module C135-43, circuit VCA06 (WH/OG), harness side and ground.
      • ABS module C135-42, circuit RCA20 (BN), harness side and ground.
        Fig 12: Identifying Measuring Resistance Between ABS Module And Ground Connector End View
        G06938858Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    1. Yes:  GO to D7  .
    2. No:  REPAIR the affected circuit (s) for a short to ground. CLEAR the DTCs. TEST DRIVE the vehicle at least 20 km/h (12 mph). REPEAT the self-test.
  7. D7 CHECK THE WHEEL SPEED CIRCUITS FOR AN OPEN
    • Disconnect: ABS Module C135.
    • Disconnect: Suspect Wheel Speed Sensor.
    • For front wheel speed sensors, measure the resistance between ABS module C135, harness side and the suspect wheel speed sensor connector, harness side as follows:
      WHEEL SPEED SENSOR CONNECTOR REFERENCE CHART

      Sensor Location Wheel Speed Sensor Circuit ABS Module
      LF C150-2 VCA03 (VT/WH) C135-45
      C150-1 RCA17 (YE) C135-46
      RF C160-1 VCA05 (GY/VT) C135-34
      C160-2 RCA19 (VT) C135-33

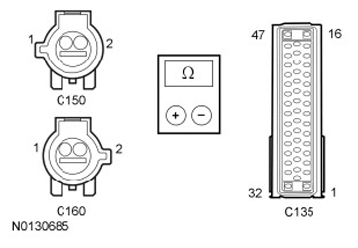

      Fig 13: Identifying Front Wheel Speed Sensor Connector Terminals Identification
      G07397588Courtesy of FORD MOTOR CO.
    • For rear wheel speed sensors, measure the resistance between ABS module C135, harness side and the suspect wheel speed sensor connector, harness side as follows:
      WHEEL SPEED SENSOR CONNECTOR REFERENCE CHART

      Sensor Location Wheel Speed Sensor Circuit ABS Module
      LR C440-1 VCA04 (BU/OG) C135-36
      C440-2 RCA18 (BN/GN) C135-37
      RR C426-1 VCA06 (WH/OG) C135-43
      C426-2 RCA20 (BN) C135-42
      Fig 14: Identifying Rear Wheel Speed Sensor Connector Terminals Identification
      G07397589Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    1. Yes:  GO to D8  .
    2. No:  REPAIR the affected circuit (s). CLEAR the DTCs. TEST DRIVE the vehicle at least 20 km/h (12 mph). REPEAT the self-test.
  8. D8 CHECK FOR SHORTED WHEEL SPEED SENSOR CIRCUITS
    • For LF sensor  , measure the resistance between:
      • LF wheel speed sensor C150-2, circuit VCA03 (VT/WH), harness side and LF wheel speed sensor C150-1, circuit RCA17 (YE), harness side.
        Fig 15: Identifying Measuring Resistance LF Wheel Speed Sensor And LF Wheel Speed Sensor Connector End View
        G07397590Courtesy of FORD MOTOR CO.
    • For RF sensor  , measure the resistance between:
      • RF wheel speed sensor C160-1, circuit VCA05 (GY/VT), harness side and RF wheel speed sensor C160-2, circuit RCA19 (VT), harness side.
        Fig 16: Identifying Measuring Resistance RF Wheel Speed Sensor And RF Wheel Speed Sensor Connector End View
        G07397591Courtesy of FORD MOTOR CO.
    • For LR sensor  , measure the resistance between:
      • LR wheel speed sensor C440-1, circuit VCA04 (BU/OG), harness side and LR wheel speed sensor C440-2, circuit RCA18 (BN/GN), harness side.
        Fig 17: Identifying Measuring Resistance LR Wheel Speed Sensor And LR Wheel Speed Sensor Connector End View
        G07397592Courtesy of FORD MOTOR CO.
    • For RR sensor  , measure the resistance between:
      • RR wheel speed sensor C426-1, circuit VCA06 (WH/OG), harness side and RR wheel speed sensor C426-2, circuit RCA20 (BN), harness side.
        Fig 18: Identifying Measuring Resistance LR Wheel Speed Sensor And LR Wheel Speed Sensor Connector End View
        G07397592Courtesy of FORD MOTOR CO.
    • Is the resistance greater 10,000 ohms?
    1. Yes:  GO to D9  .
    2. No:  REPAIR the affected circuit (s). CLEAR the DTCs. TEST DRIVE the vehicle at least 20 km/h (12 mph). REPEAT the self-test.
  9. D9 CHECK FOR FAULT REPEATABILITY
    • Connect: ABS Module C135.
    • Connect: Suspect Wheel Speed Sensor.
    • Ignition ON.
    • Using a scan tool, clear all CMDTCs  .
    • Drive the vehicle at least 20 km/h (12 mph).
    • Bring the vehicle to a safe stop.
    • Enter the following diagnostic mode on the scan tool: Self-Test - ABS Module.
    • Is the original ABS module DTC(s) still present?
    1. Yes:  GO to D10  .
    2. No:  If a new ABS module DTC is present, DIAGNOSE the new DTC. REFER to the DTC Charts .

      If no ABS module DTCs are present, the system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.

  10. D10 CHECK THE HARNESS AND CONNECTORS
    • Disconnect: ABS Module C135.
    • Disconnect: Suspect Wheel Speed Sensor.
    • Inspect the connectors (including any in-line connectors) for:
      • corrosion
      • loose or spread terminals
      • loose or frayed wire connections at terminals
    • Were any concerns found?
    1. Yes:  REPAIR as necessary

      Refer to appropriate SYSTEM WIRING DIAGRAMS article for schematic and connector information.

    2. No:  GO to D11  .
  11. D11 CHECK FOR CORRECT ABS MODULE OPERATION
    • Check ABS module C135 for:
      • corrosion
      • pushed-out pins
      • spread terminals
    • Connect: ABS Module C135.
    • Connect: Suspect Wheel Speed Sensor.
    • Make sure the connector is seated correctly, then operate the system and verify the concern is still present.
    • Is the concern still present?
    1. Yes:  For vehicles without adaptive cruise control, INSTALL a new ABS module. REFER to ANTI-LOCK BRAKE SYSTEM (ABS) MODULE . TEST the system for normal operation.

      For vehicles with adaptive cruise control, INSTALL a new HCU  . REFER to HYDRAULIC CONTROL UNIT (HCU) .

    2. No:  The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
