Parking Brake Cable - Rear, RH: Notes

NOTE: All-Wheel Drive (AWD) vehicles shown in illustration, Front Wheel Drive (FWD) vehicles similar.

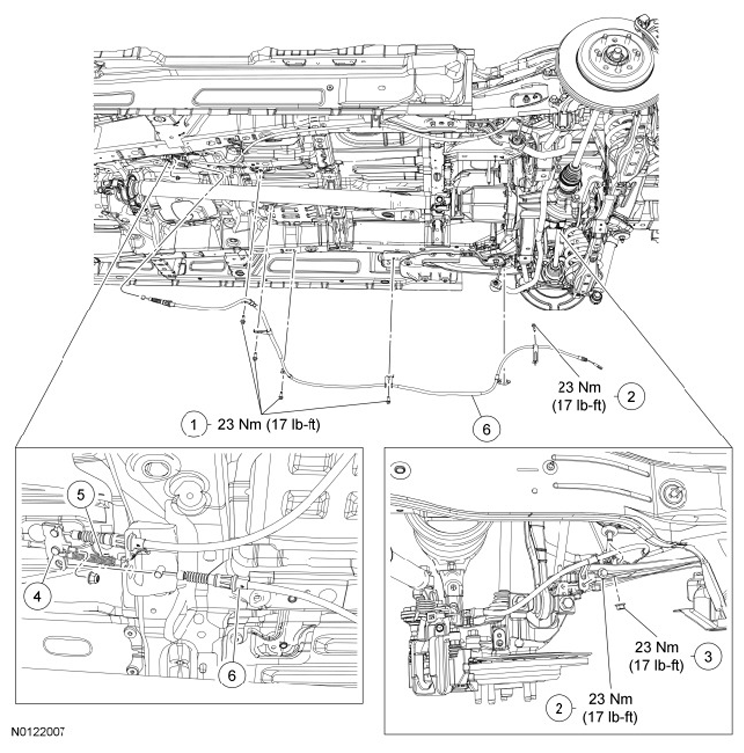

Fig 1: Parking Brake Cable Nuts And Bolts With Torque Specifications (Rear RH)

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W708004	Rear parking brake cable bracket-to-floor pan bolts
2	W707622	Rear parking brake cable bracket-to-rear knuckle bolt
3	W520414	Parking brake cable bracket-to-rear stabilizer bar link nut
4	-	Parking brake cable equalizer (part of 2853)
5	2634	Parking brake cable underbody spring
6	2A635	RH parking brake cable
