Rear Brake Flexible Hose: Material

MATERIAL SPECIFICATIONS

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada)	WSS-M6C62-A or WSS-M6C65-A1

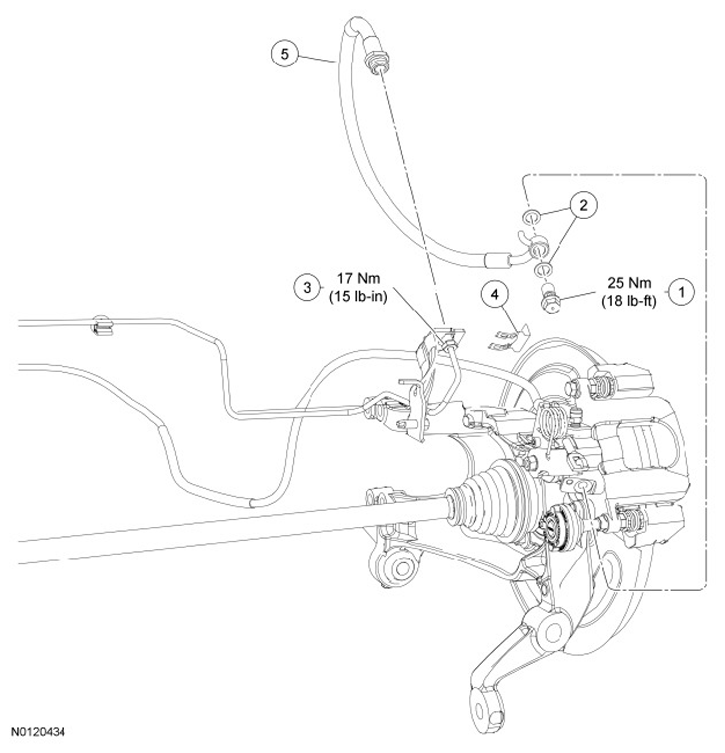

Fig 1: Brake Flexible Hose Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	2K573	Brake caliper flow bolt
2	W711784	Copper washers (2 required)
3	-	Brake tube fitting (part of 2265 RH/2C287 LH)
4	2B223	Brake flexible hose retaining clip
5	2282	Brake flexible hose
