Brake Fluid Reservoir: Material

MATERIAL SPECIFICATIONS

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada)	WSS-M6C62-A or WSS-M6C65-A1

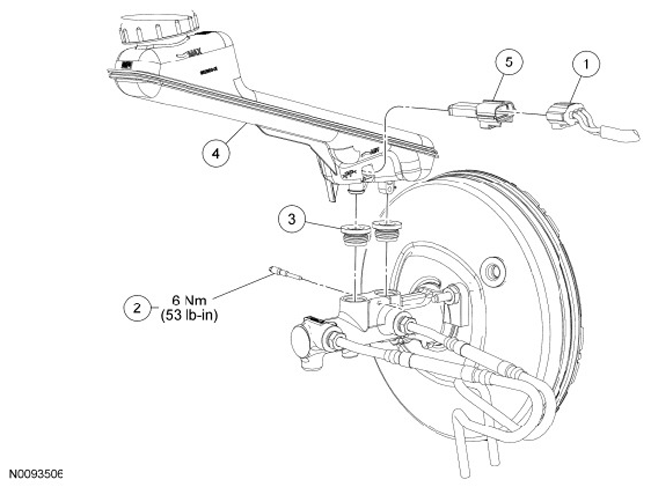

Fig 1: Brake Fluid Reservoir Pin, Seal Switch And Electrical Connector With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	Brake fluid level switch electrical connector (part of 14290)
2	2462	Brake fluid reservoir pin
3	2L074	Brake fluid reservoir seal (2 required)
4	2K478	Brake fluid reservoir
5	2C251	Brake fluid level switch
