Front of Cushion Frame and Power Seat Track From Underneath

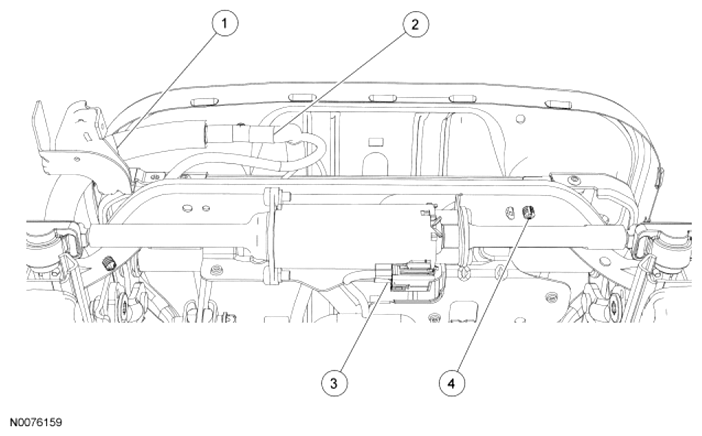

Fig 1: Identifying Cushion Frame Components Location (Front)
G07403118Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Description
1 Seat control switch and rear height motor takeout must be routed on top of the bracket
2 Wire harness attachment points
3 Horizontal motor electrical connector
4 Safety belt buckle switch electrical connector pin-type retainer attached in place
