Front and Outboard Side of Cushion Frame and Power Seat Track From Upright

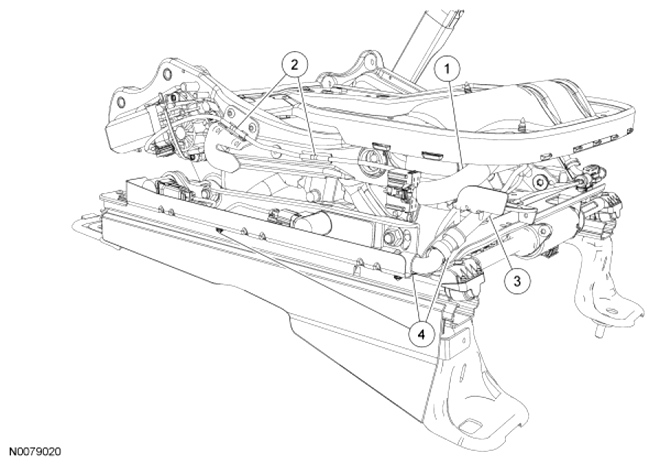

Fig 1: Identifying Cushion Frame Components Location (Front And Outboard Side)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Description
1	Seat control switch and rear height motor takeout must be routed on top of the bracket
2	Rear height motor takeout attachment points
3	Outboard Occupant Classification System (OCS) weight sensor bolt takeout must be routed under the bracket
4	Outboard OCS  weight sensor bolt takeout attachment points
