Front Inboard Side of Cushion Frame and Power Seat Track From Upright

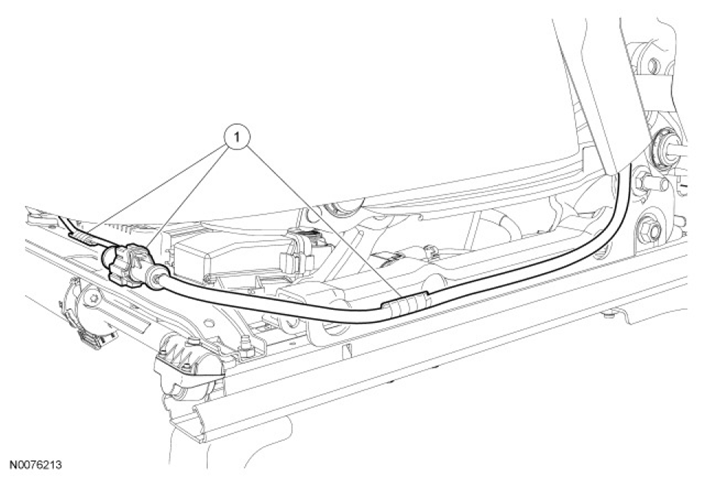

Fig 1: Identifying Cushion Frame Components Location (Front Inboard Side)
G07403119Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Description
1 Safety belt buckle switch electrical connector and wire harness takeout routing attachment points
