Outboard of Cushion Frame and Power Seat Track From Upright

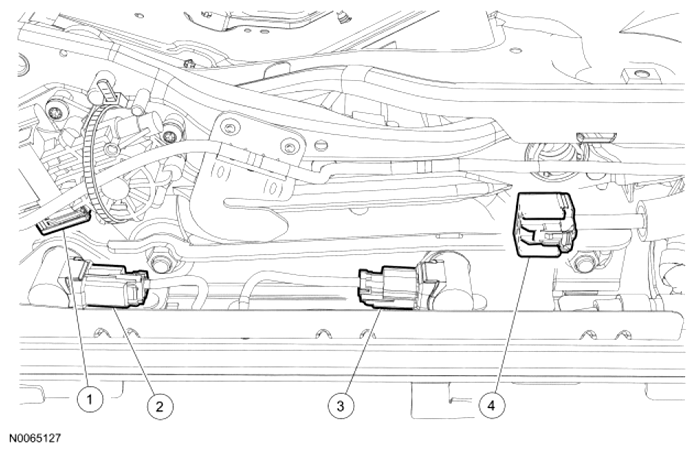

Fig 1: Identifying Cushion Frame Components Location (From Upright)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Description
1	Rear height motor electrical connector
2	Rear outboard Occupant Classification System (OCS) weight sensor bolt electrical connector
3	Front outboard OCS  weight sensor bolt electrical connector
4	Seat control switch electrical connector

1. Make sure the passenger seat cushion wire harness is correctly routed and attached.
