Inboard Side of Cushion Frame and Power Seat Track From Underneath

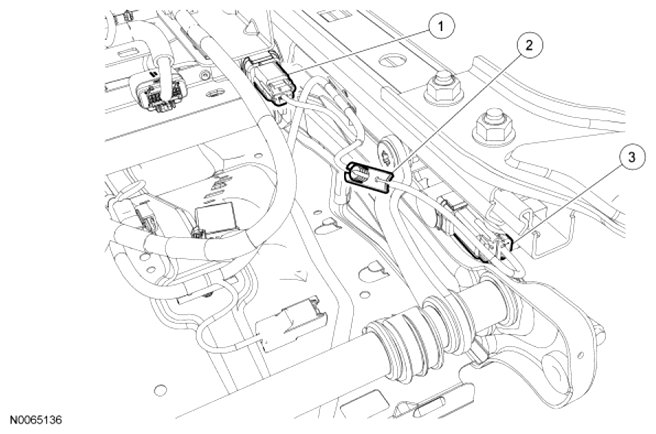

Fig 1: Identifying Cushion Frame Components Location (Inboard Side)
G07403124Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Description
1 Front inboard Occupant Classification System (OCS) weight sensor bolt electrical connector
2 Attaches to inboard OCS  weight sensor bolt protection bracket
3 Rear inboard OCS  weight sensor bolt electrical connector
