Cushion Frame With Power Seat Track Attached From Underneath

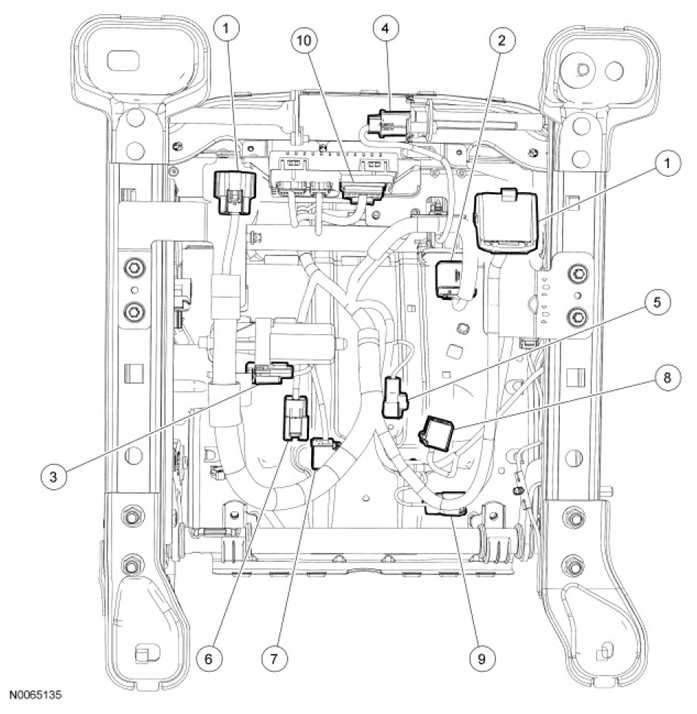

Fig 1: Identifying Cushion Frame Components Location (Cushion Frame With Power Seat Track Attached)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Description
1	In-line electrical connector-to-vehicle harness electrical connector
2	Occupant Classification System Module (OCSM) electrical connector
3	Front height motor electrical connector
4	Horizontal motor electrical connector
5	Side air bag electrical connector
6	Power recline electrical connector
7	Backrest Thermo-Electric Device (TED) electrical connector
8	Cushion TED  electrical connector
9	Power lumbar electrical connector
10	Dual Climate Controlled Seat Module (DCSM) and 3 electrical connectors
