Cushion Frame From Underneath

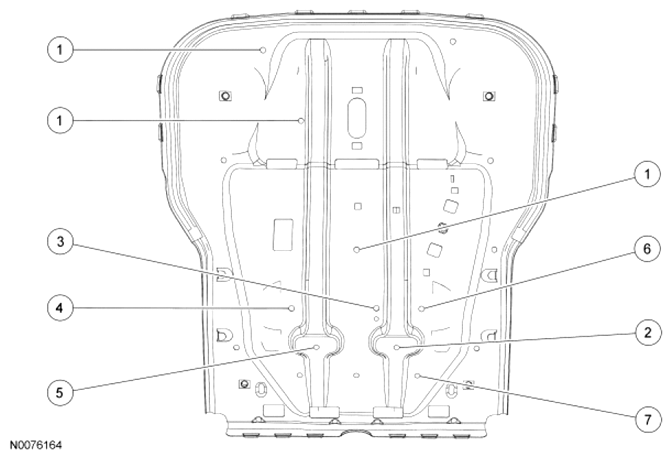

Fig 1: Identifying Cushion Frame Components Location
G07403122Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Description
1 Wire harness main bundle
2 Occupant Classification System (OCS) weight sensor bolt wire harness takeout
3 Side air bag electrical connector
4 Power recline electrical connector
5 Backrest Thermo-Electric Device (TED) electrical connector
6 Cushion TED  electrical connector
7 Power lumbar electrical connector
