Cushion Frame From Underneath

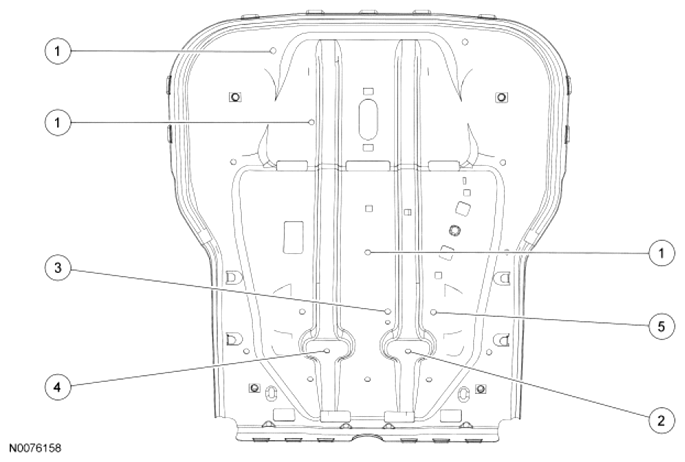

Fig 1: Identifying Cushion Frame Components Location
G07403108Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Description
1 Wire harness main bundle
2 Occupant Classification System (OCS) weight sensor bolt wire harness takeout
3 Side air bag electrical connector
4 Cushion heater mat electrical connector
5 Backrest heater mat electrical connector
