Inboard Side of Cushion Frame and Manual Seat Track From Upright

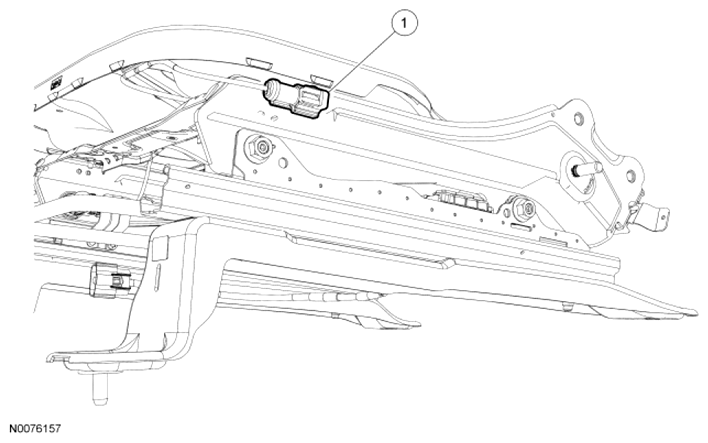

Fig 1: Locating Safety Belt Buckle Switch Electrical Connector
G07403102Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Description
1 Safety belt buckle switch electrical connector
  1. Make sure the passenger seat cushion wire harness is correctly routed and attached.
