Inboard Side of Cushion Frame and Manual Seat Track From Underneath

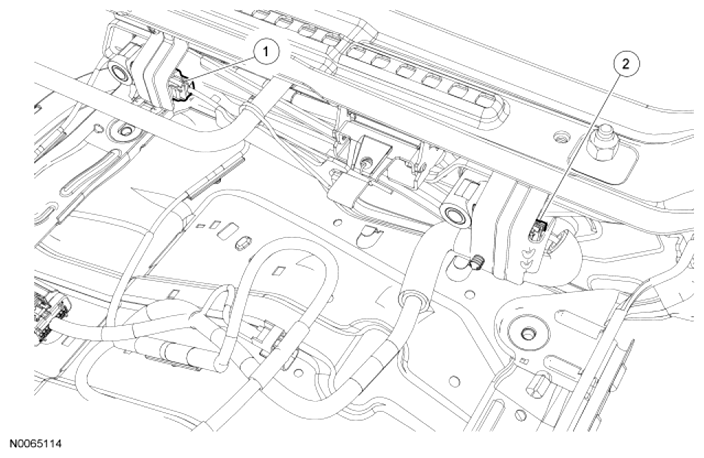

Fig 1: Locating Rear Outboard OCS Weight Sensor Bolt And Front Outboard OCS Weight Sensor Bolt Electrical Connector
G07403101Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Description
1 Front inboard Occupant Classification System (OCS) weight sensor bolt electrical connector
2 Rear inboard OCS  weight sensor bolt electrical connector
