Cushion Frame With Manual Seat Track Attached From Underneath

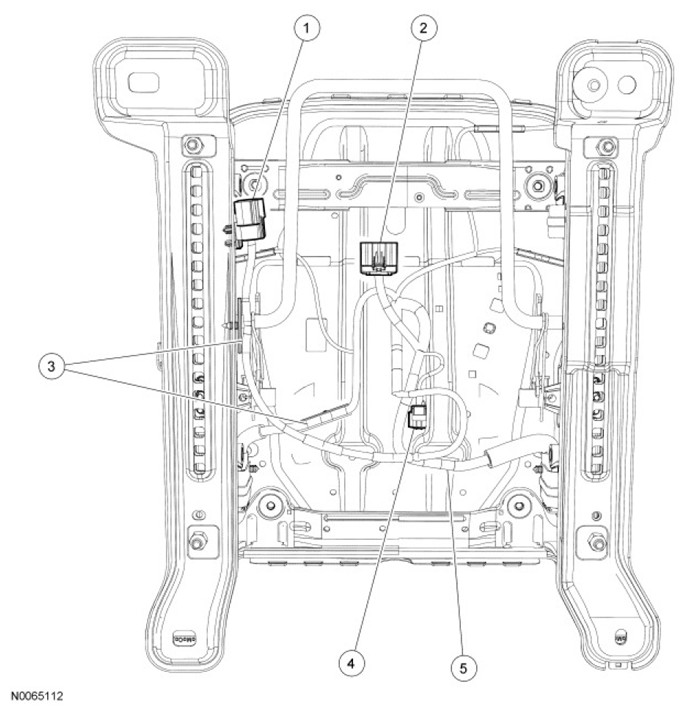

Fig 1: Identifying Cushion Frame With Manual Seat Track Components Location (From Underneath)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Description
1	In-line electrical connector to vehicle harness electrical connector
2	Occupant Classification System Module (OCSM) electrical connector
3	Wire harness with gray tape
4	Side air bag electrical connector
5	Wire harness with orange tape
