Cushion Frame With Manual Seat Track Attached From Underneath

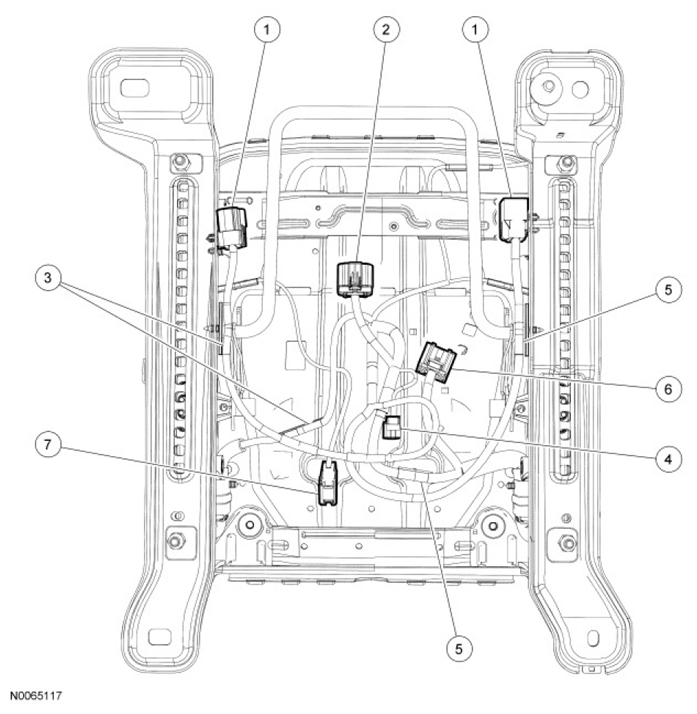

Fig 1: Identifying Cushion Frame Components Location (Cushion Frame With Manual Seat Track Attached)
ITEM DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | In-line electrical connector to vehicle harness electrical connector |
| 2 | Occupant Classification System Module (OCSM) connector |
| 3 | Wire harness with gray tape |
| 4 | Side air bag electrical connector |
| 5 | Wire harness with orange tape |
| 6 | Heated seat module electrical connector |
| 7 | Cushion heater mat electrical connector |
