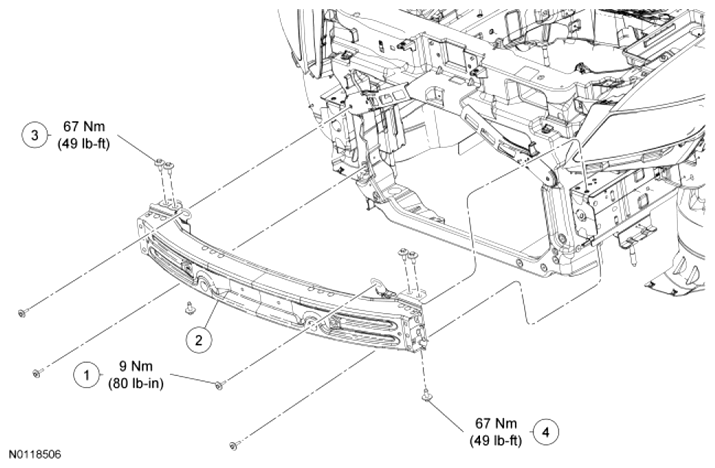

Fig 1: Front Bumper Component Locations With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W712207	Front bumper-to-radiator support bolt (4 required)
2	17757	Front bumper
3	W711617	Front bumper upper bolt (4 required)
4	W711617	Front bumper lower bolt (2 required)

Remove the front bumper cover. For additional information, refer to BUMPER COVER - FRONT .
Remove the 6 front bumper bolts (3 each side).
- To install, tighten to 67 Nm (49 lb-ft).

  Fig 2: Locating Front Bumper Bolts
  Courtesy of FORD MOTOR CO.
Remove the 4 upper and lower bumper-to-radiator support bolts (2 each side).
- To install, tighten to 9 Nm (80 lb-in).

  Fig 3: Locating Upper And Lower Bumper-To-Radiator Support Bolts
  Courtesy of FORD MOTOR CO.
Remove the front bumper.
To install, reverse the removal procedure.
