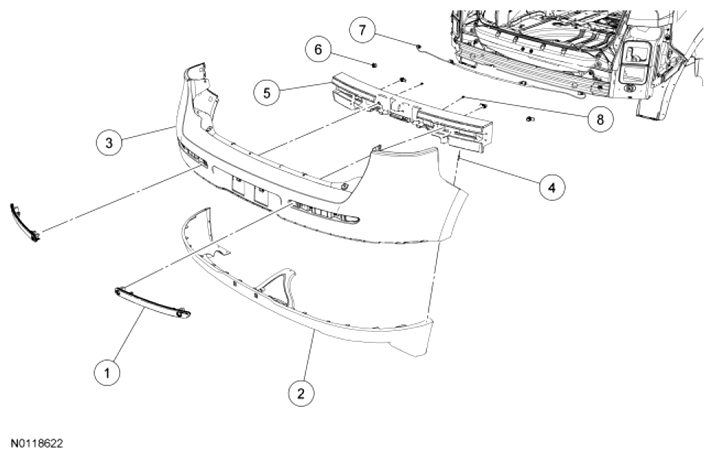

Rear Bumper Cover Components - MKX Shown, Edge Similar
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Parking aid sensor cover (part of 15K859) |
| 2 | 17K835 | Lower rear bumper cover |
| 3 | 17810 | Upper rear bumper cover |
| 4 | W702852 | Upper rear bumper cover-to-lower rear bumper cover rivet (2 required) |
| 5 | 17E855 | Upper rear bumper cover support |
| 6 | 15K859 | Rear parking aid sensor (if equipped, 4 required) |
| 7 | - | Rear parking aid sensor electrical connector (part of 14N139) |
| 8 | W704817 | Upper rear bumper cover support clip (2 required) |
- For additional information, refer to the procedures in this service information.
