Rear Bumper Cover Assembly - MKX Shown, Edge Similar

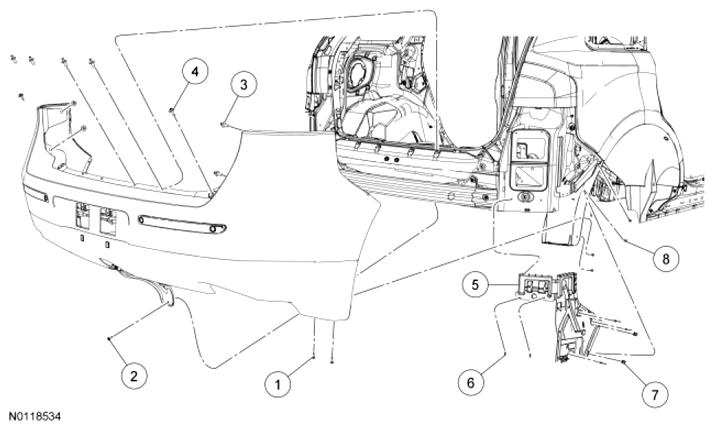

Fig 1: Exploded View Of Rear Bumper Cover Assembly

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W710763	Lower rear bumper cover-to-rear splash shield bolt (2 required)
2	W706805	Lower rear bumper cover-to-rear underbody bolt
3	W710250	Upper rear bumper cover pin-type retainer (8 required/Edge 6 required)
4	N807658	Upper rear bumper cover bolt (2 required)
5	17D942/17D943	Rear bumper cover support bracket (RH/LH)
6	W714599	Rear bumper cover support rivet (5 required)
7	W704277	Rear bumper cover support bracket nut (2 required)
8	W710763	Rear splash shield retainers (4 required)
