Seat Cushion With Power Seat Track

NOTE: Driver seat shown in illustration, passenger similar.

NOTE: A new heater mat will come assembled on a new foam pad.

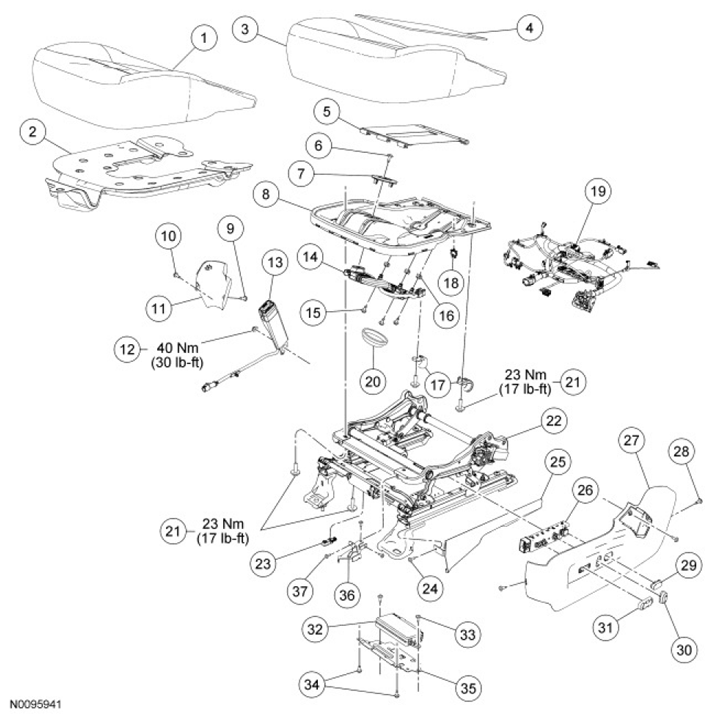

Fig 1: Exploded View Of Front Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	62901	Cushion trim cover
2	18D507	Cushion climate control seat manifold (if equipped)
3	632A23	Cushion foam pad
4	-	Cushion heater mat (part of 632A23)
5	63226	Cushion support
6	W505945	Cushion Thermo-Electric Device (TED)-to-climate control seat cushion adapter screw (if equipped)
7	18D507	Cushion TED adapter (if equipped)
8	63100	Cushion frame
9	62294	Recliner side shield screw
10	W714053	Scrivet
11	62187	Recliner side shield
12	-	Safety belt buckle-to-seat track nut (part of 61203)
13	61203	Safety belt buckle
14	18D507	Cushion TED (if equipped)
15	W505945	Cushion TED -to-cushion frame screw (3 required) (if equipped)
16	-	Screw grommet (3 required)
17	60328	Cushion frame-to-seat track rear brackets
18	14A163	Wire clip
19	14A699	Driver seat wire harness
20	19E880	Cushion TED filter (if equipped)
21	W506021	Seat track-to-cushion frame bolts (4 required)
22	61711	Power seat track assembly
23	14B416	Seat position sensor (driver only)
24	62294	Seat track cover retainer
25	62187	Seat track cover
26	14A701	Seat control switch
27	62187	Cushion side shield
28	62294	Cushion side shield retainer (3 required)
29	14711	Power lumbar switch knob (if equipped)
30	14711	Power seat recliner knob
31	14711	Seat control switch knob
32	14C708	Driver Seat Module (DSM) (if equipped)
33	62294	DSM -to-bracket screw (2 required) (if equipped)
34	62294	Bracket-to-seat track screws (if equipped)
35	14A301	DSM bracket (if equipped)
36	14A301	Shield bracket
37	62294	Shield bracket screws
