Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear

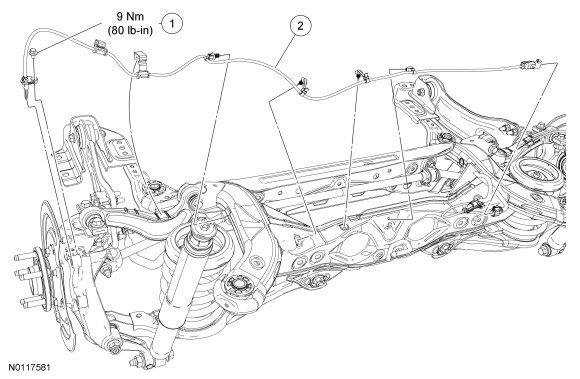

Left-Rear Wheel Speed Sensor

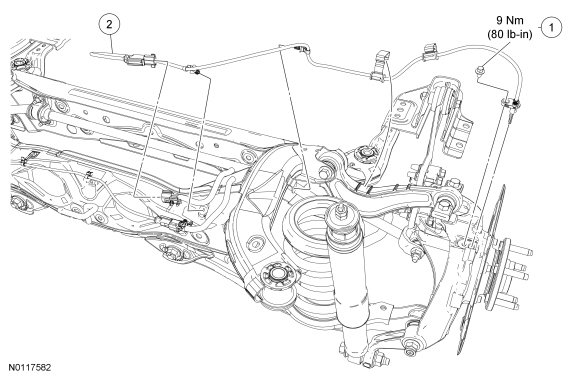

Right-Rear Wheel Speed Sensor









Removal and Installation

1. Remove the wheel and tire.

2. Disconnect the wheel speed sensor electrical connector.

3. NOTE: It is not necessary to remove the harness routing brackets.
Disconnect the wheel speed sensor harness from the brackets.


4. Disconnect the pushpin fasteners.

5. Remove the wheel speed sensor bolt and the wheel speed sensor.
- To install, tighten to 9 Nm (80 lb-in).


6. To install, reverse the removal procedure.
