Instrument Panel Cluster (IPC)

Blind Spot Monitoring

Pinpoint Tests

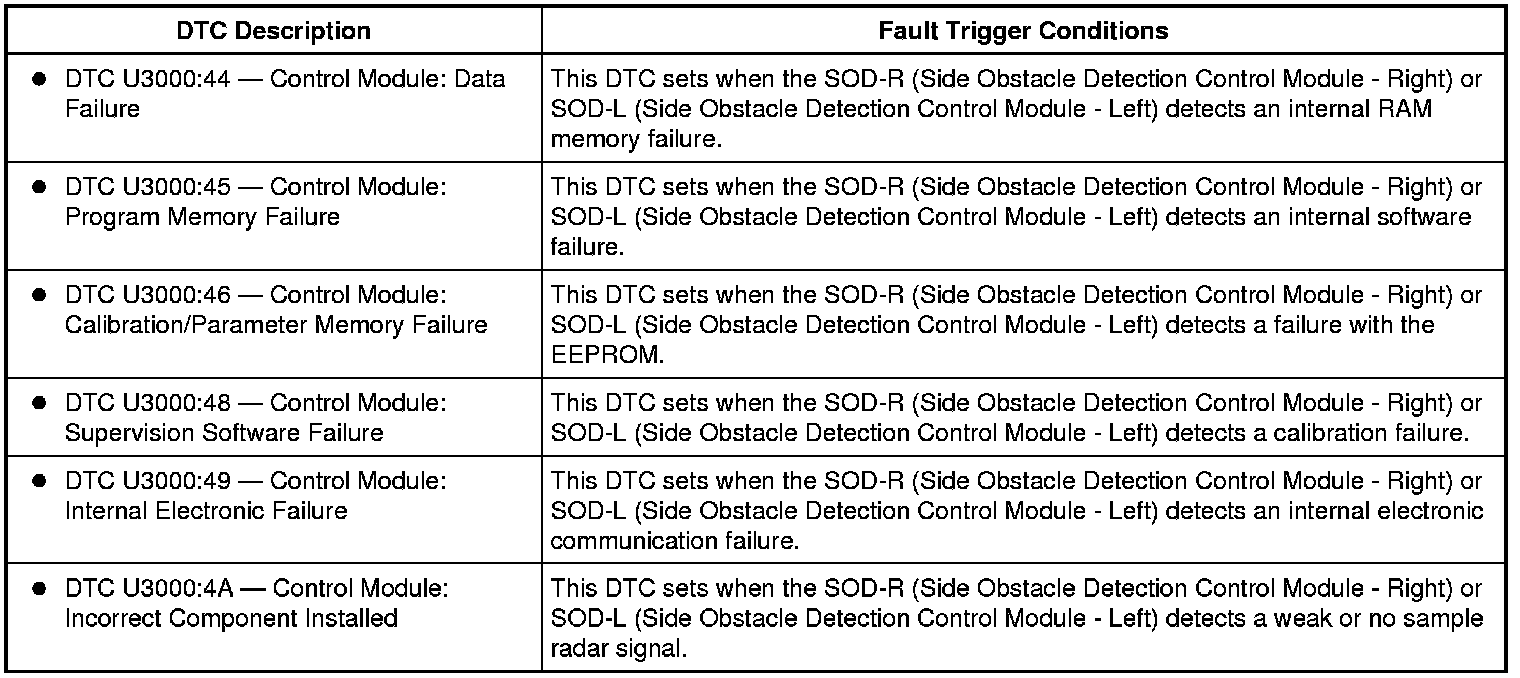

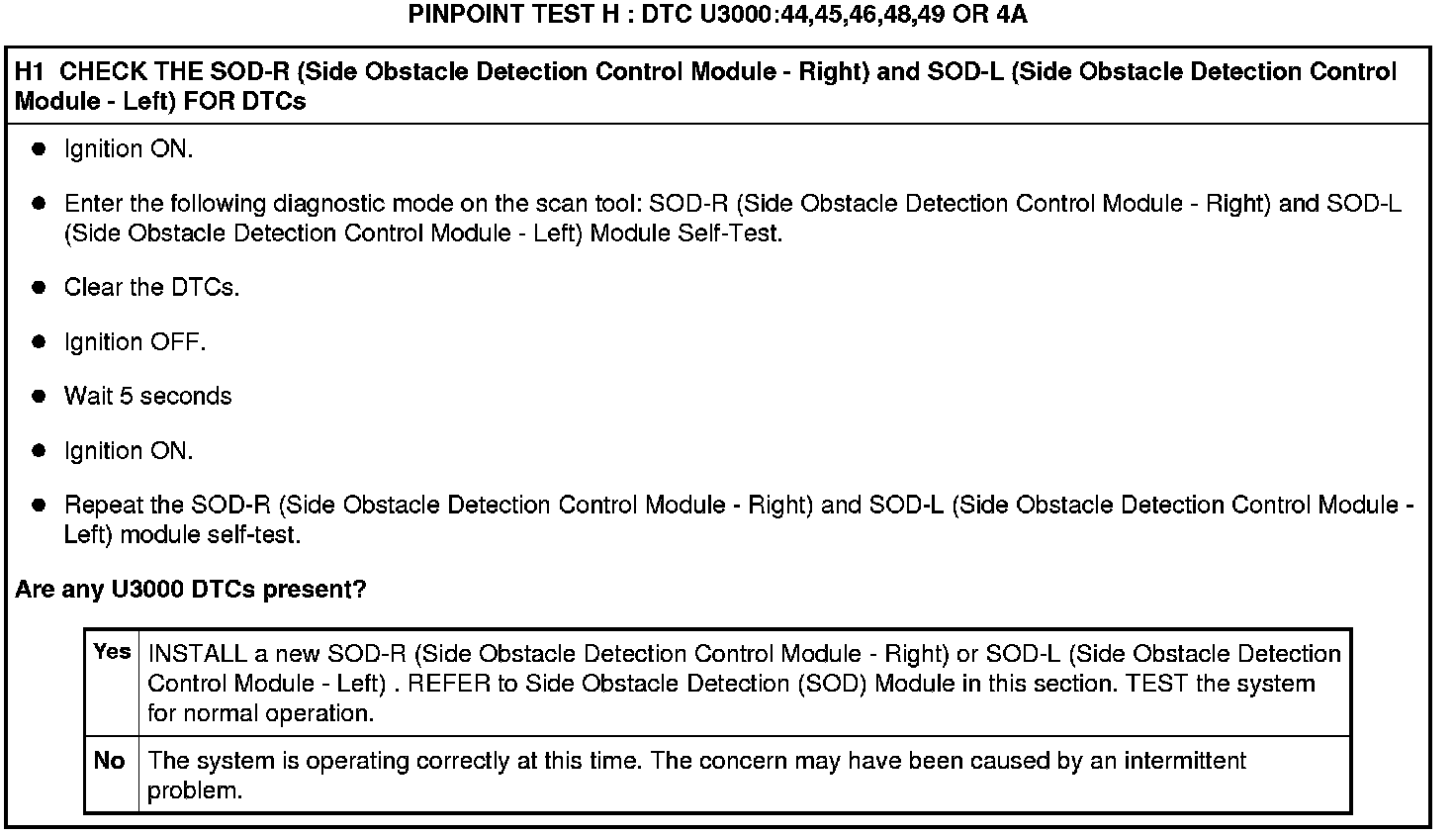

Pinpoint Test H: DTC U3000:44,45,46,48,49 Or 4A

Normal Operation

On each ignition cycle, the Side Obstacle Detection Control Module - Right (SOD-R) and Side Obstacle Detection Control Module - Left (SOD-L) run a self-diagnostic check during which the exterior mirror BLIS(R) (Blind Spot Information System) /CTA (Cross Traffic Alert) LEDs illuminate for 3 seconds then turn off indicating the system is operational. If a DTC fault is present, a system fault message is observed in the message center.





This pinpoint test is intended to diagnose the following:

- SOD-R (Side Obstacle Detection Control Module - Right)

- SOD-L (Side Obstacle Detection Control Module - Left)
