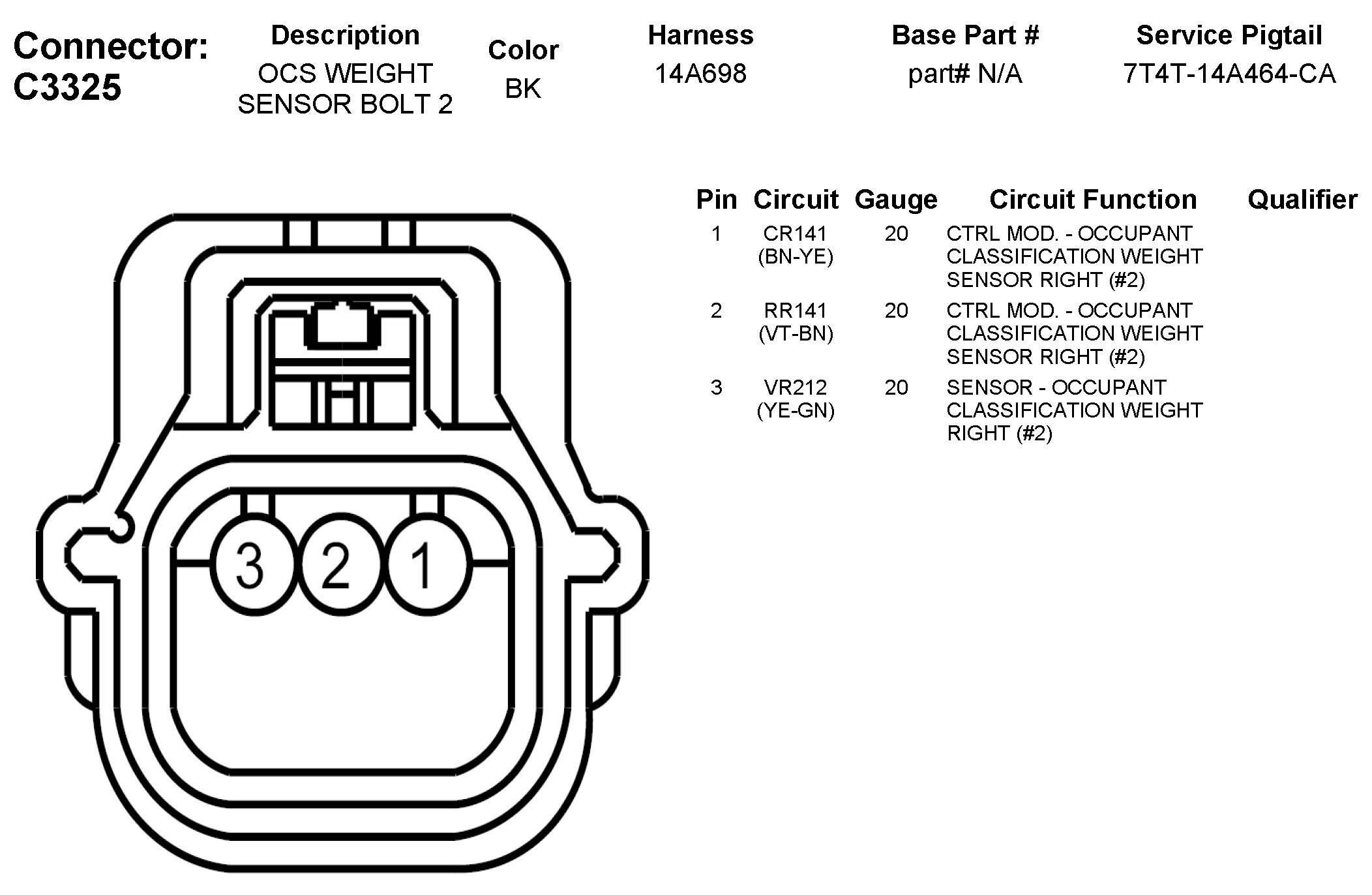

Home >> Ford >> 2011 >> Edge AWD V6-3.7L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Occupant Sensor >> Diagrams >> C3325 OCS Weight Sensor Bolt 2
