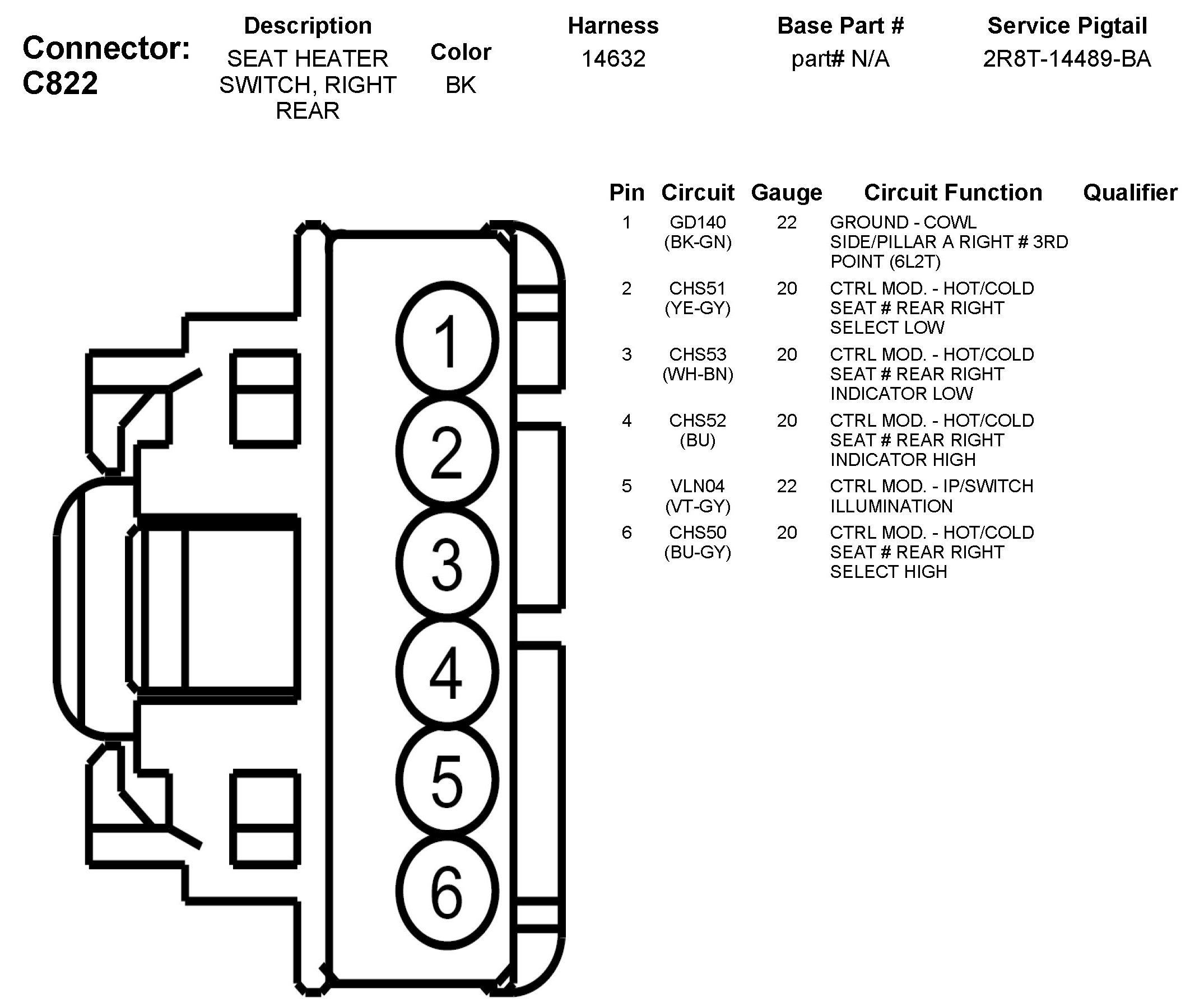

Home >> Ford >> 2011 >> Edge AWD V6-3.7L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Seat Temperature Switch >> Diagrams >> C822 Seat Heater Switch, Right Rear
