Home >> Ford >> 2011 >> Edge AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 85 (Headlamps/Autolamps)

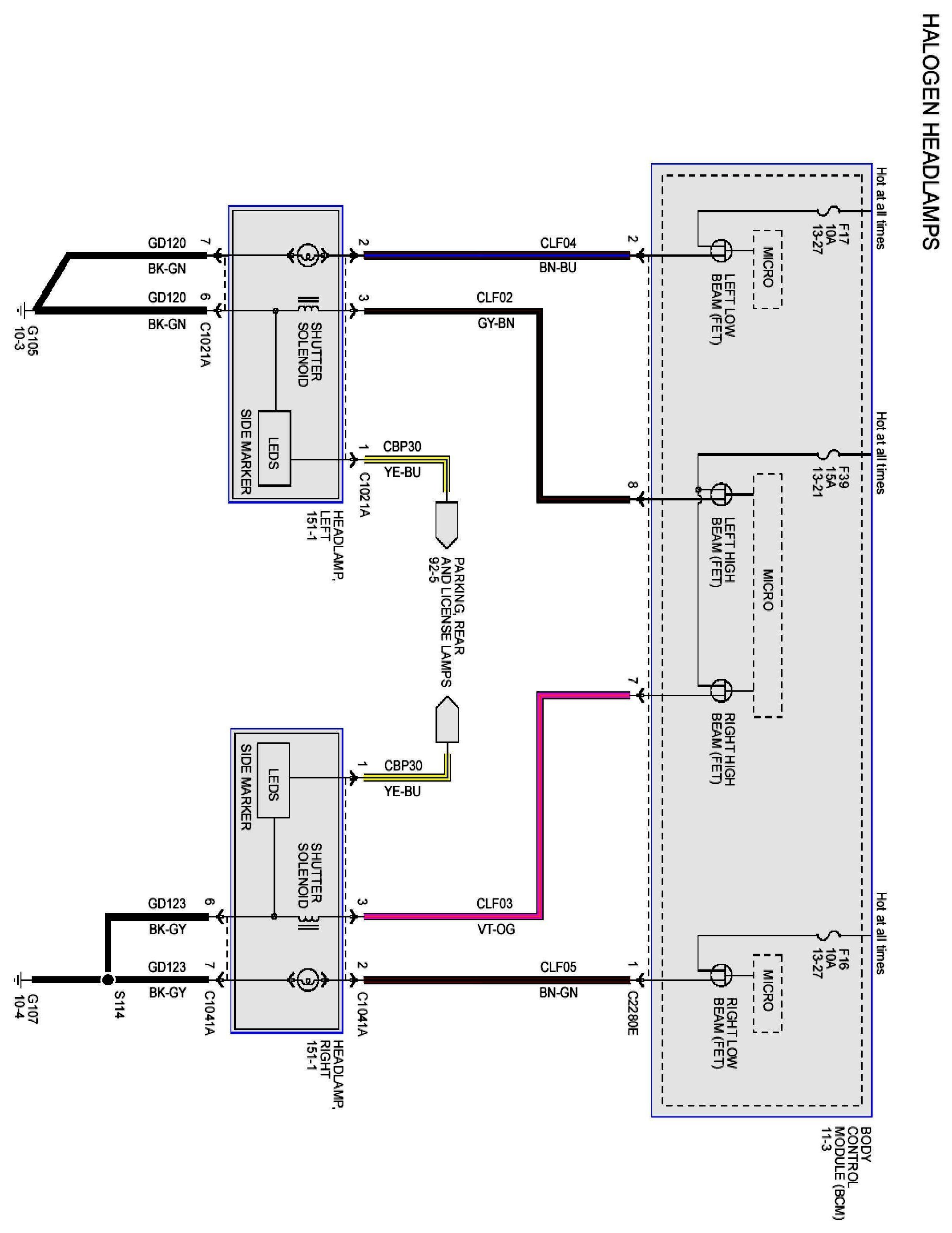

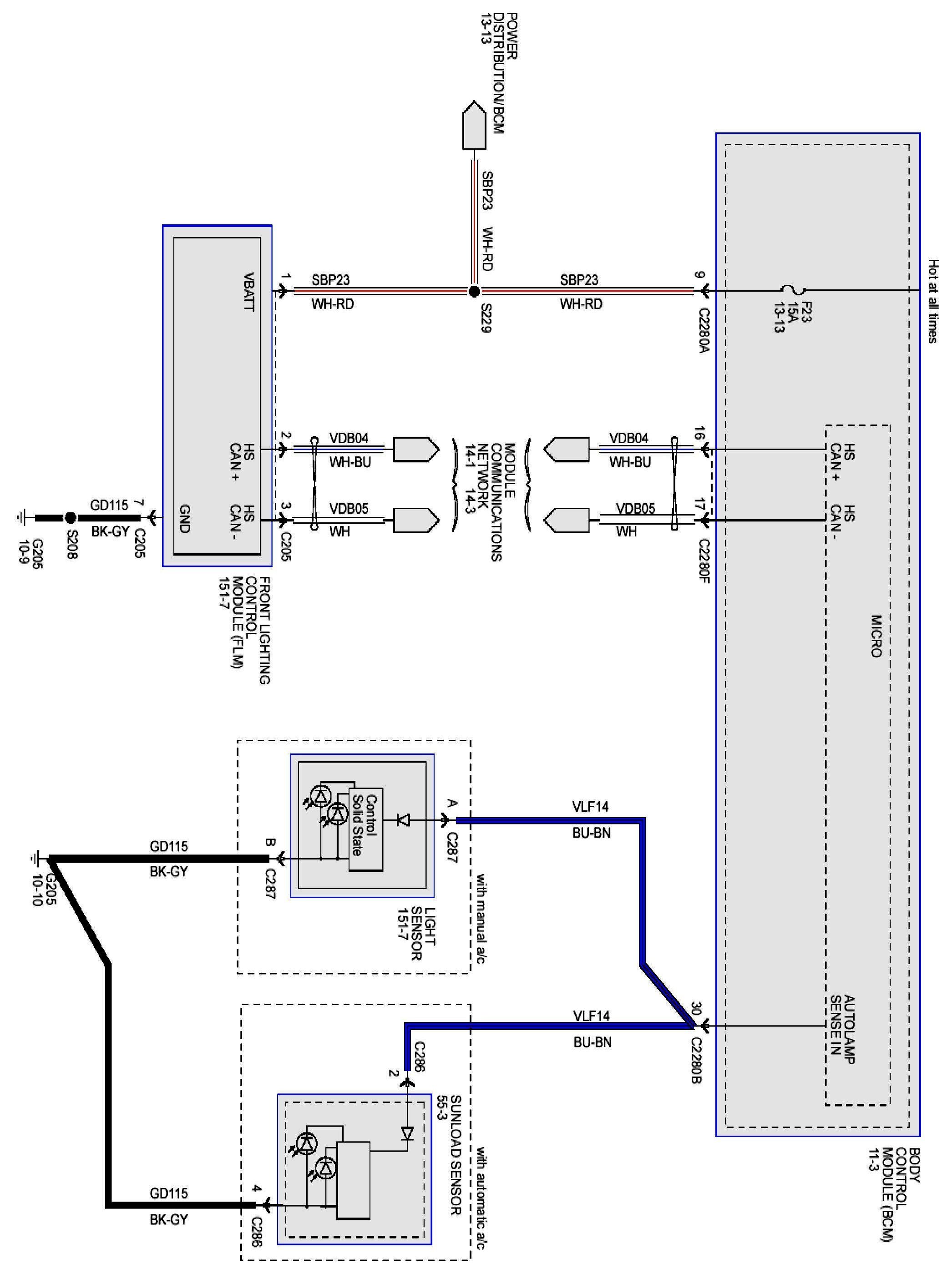

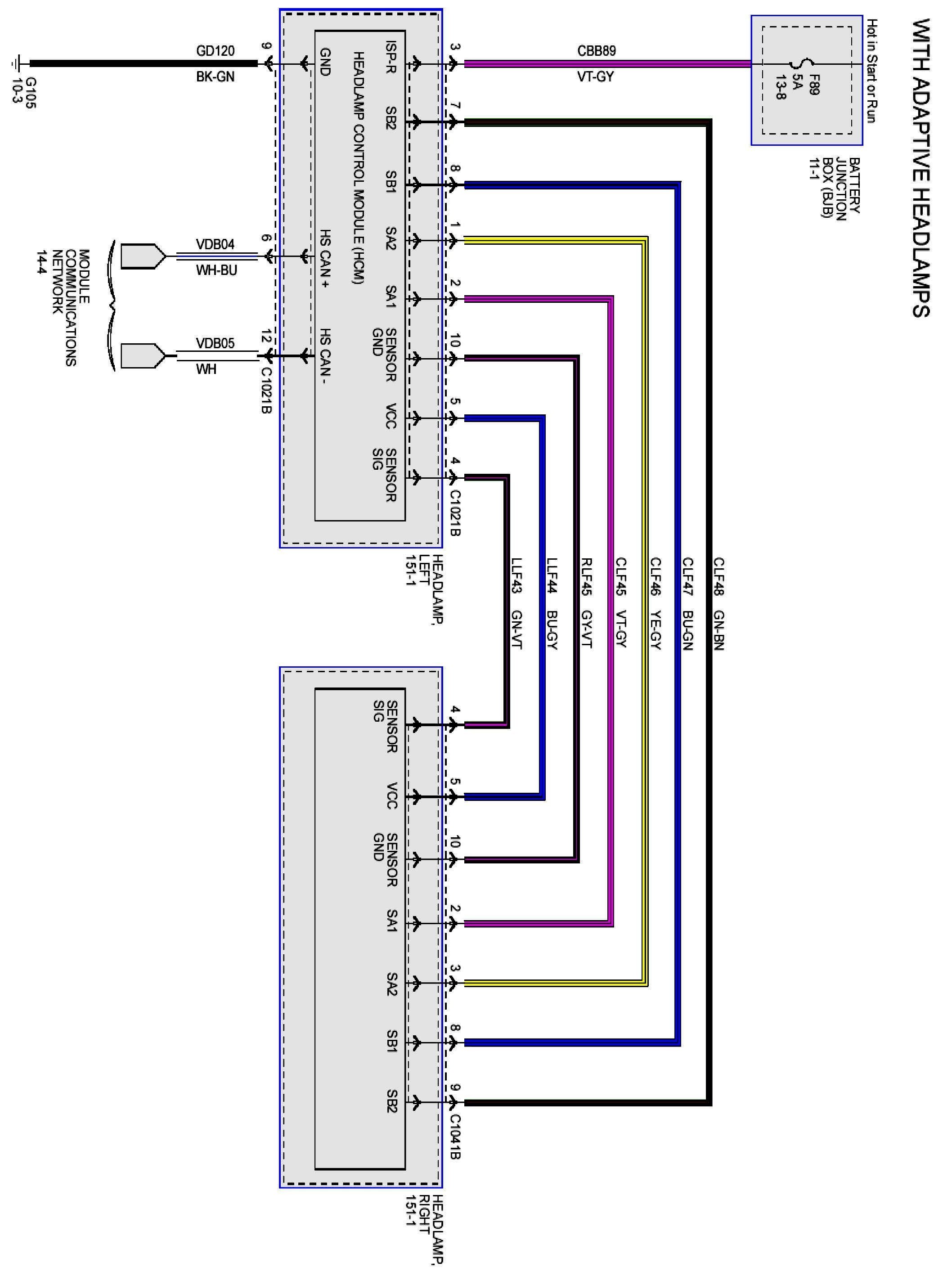

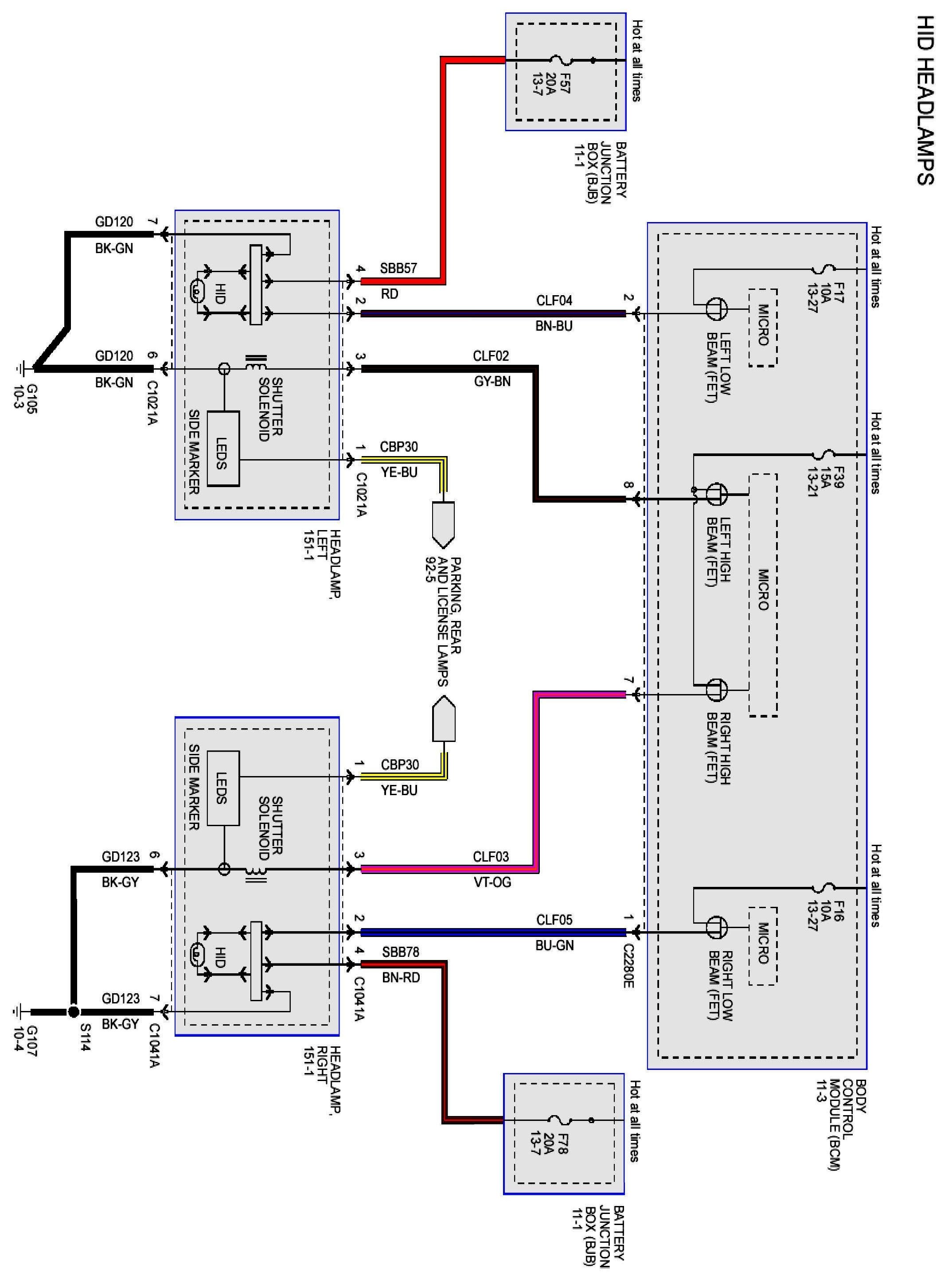

Diagram Set 85 (Headlamps/Autolamps)
