Speaker - Instrument Panel

Speaker - Instrument Panel

Edge










MKX









Removal and Installation

All vehicles

1. Using a suitable flat-bladed tool (such as a trim remover), remove the instrument panel speaker cover by prying upward to disengage the clips.

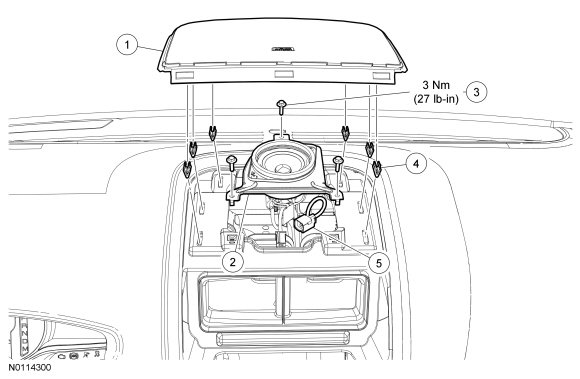

Edge

2. Remove the 2 screws and the instrument panel speaker.
- Disconnect the electrical connector.

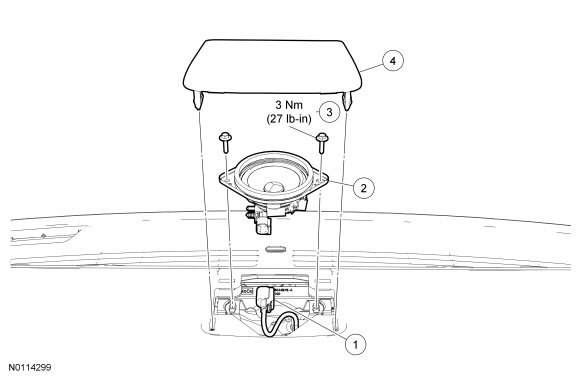

MKX

3. Remove the 3 screws and the instrument panel speaker.
- Disconnect the electrical connector.


All vehicles

4. To install, reverse the removal procedure.
