Amplifier: Service and Repair

Audio Amplifier









Removal and Installation

1. Remove the subwoofer speaker. For additional information, refer to Speaker- Subwoofer Speaker - Subwoofer.

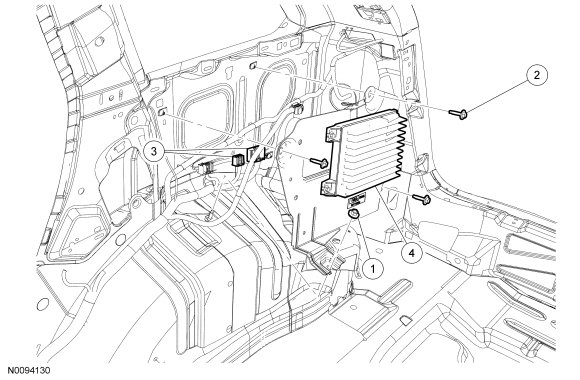

2. Disconnect the audio amplifier electrical connectors.

3. Remove the 3 screws, the nut, and the audio amplifier.

4. To install, reverse the removal procedure.
