Media Hub

Media Hub

Media Hub

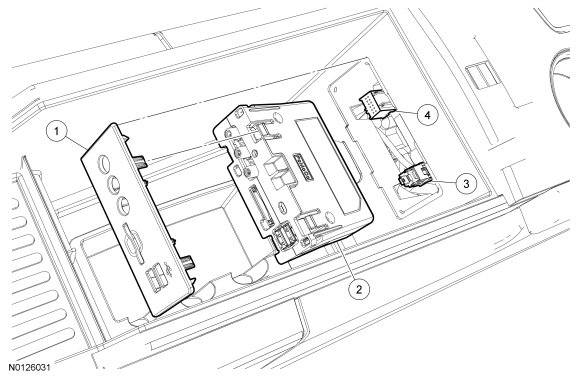

NOTE: Edge shown, MKX similar.









Removal and Installation

1. Using a suitable tool pry off the media hub bezel.

2. Slide the media hub out from the opening.
- Disconnect the 2 electrical connectors.


3. To install, reverse the removal procedure.
