P1603

Parking Aid

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start in Anti-Theft - Passive Anti-Theft System (PATS) Anti-Theft - Passive Anti-Theft System (PATS) to review the procedures for achieving the various ignition states (ignition in accessory, on, start, off) on vehicles with this feature.

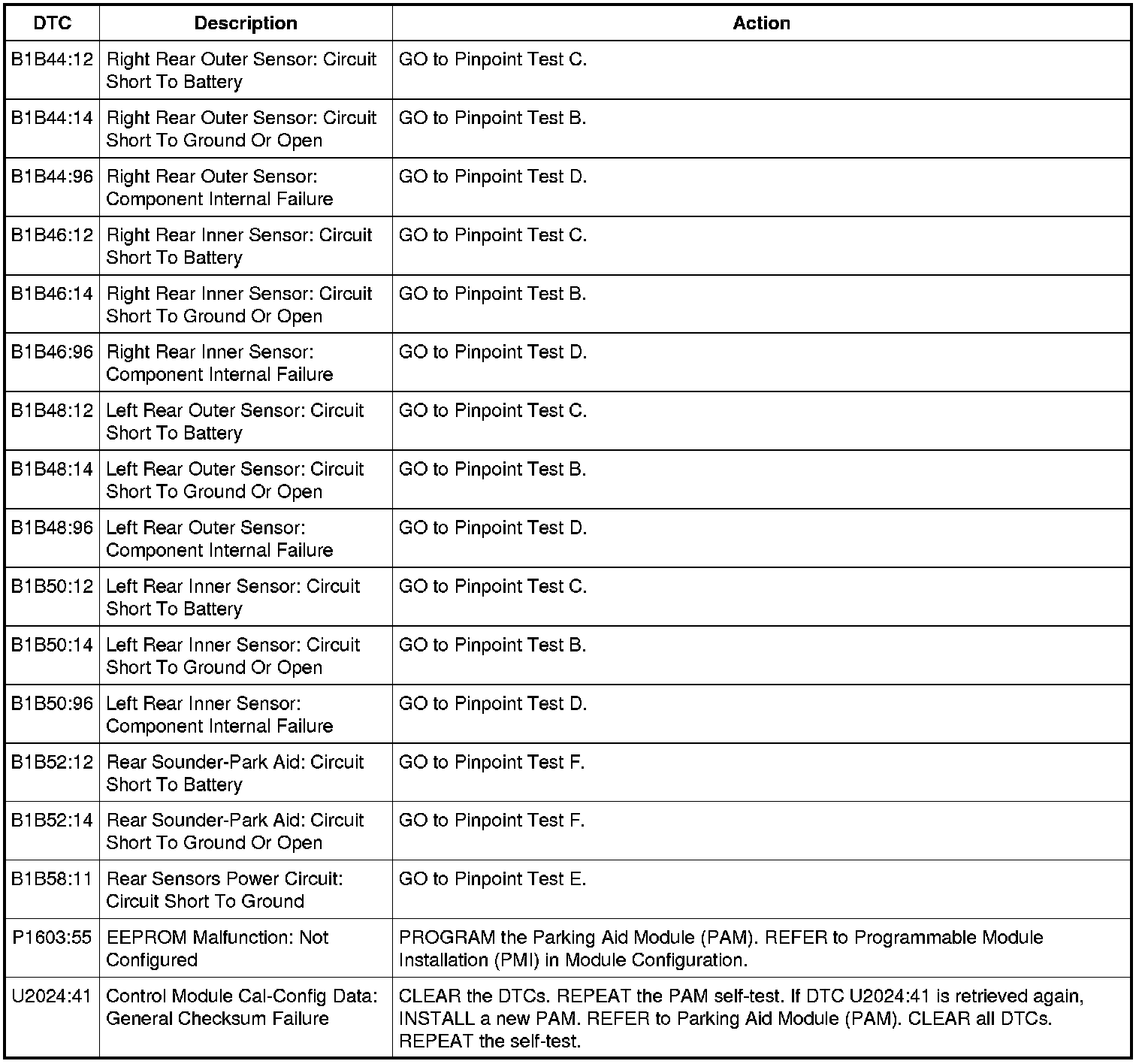

Parking Aid Module (PAM) DTC Chart
