Dual Climate Controlled Seat Module (DCSM) DTC Chart

Seats

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access with Push Button Start in Anti-Theft - Passive Anti-Theft System (PATS) Anti-Theft - Passive Anti-Theft System (PATS) to review the procedures for achieving the various ignition states on vehicles with this feature.

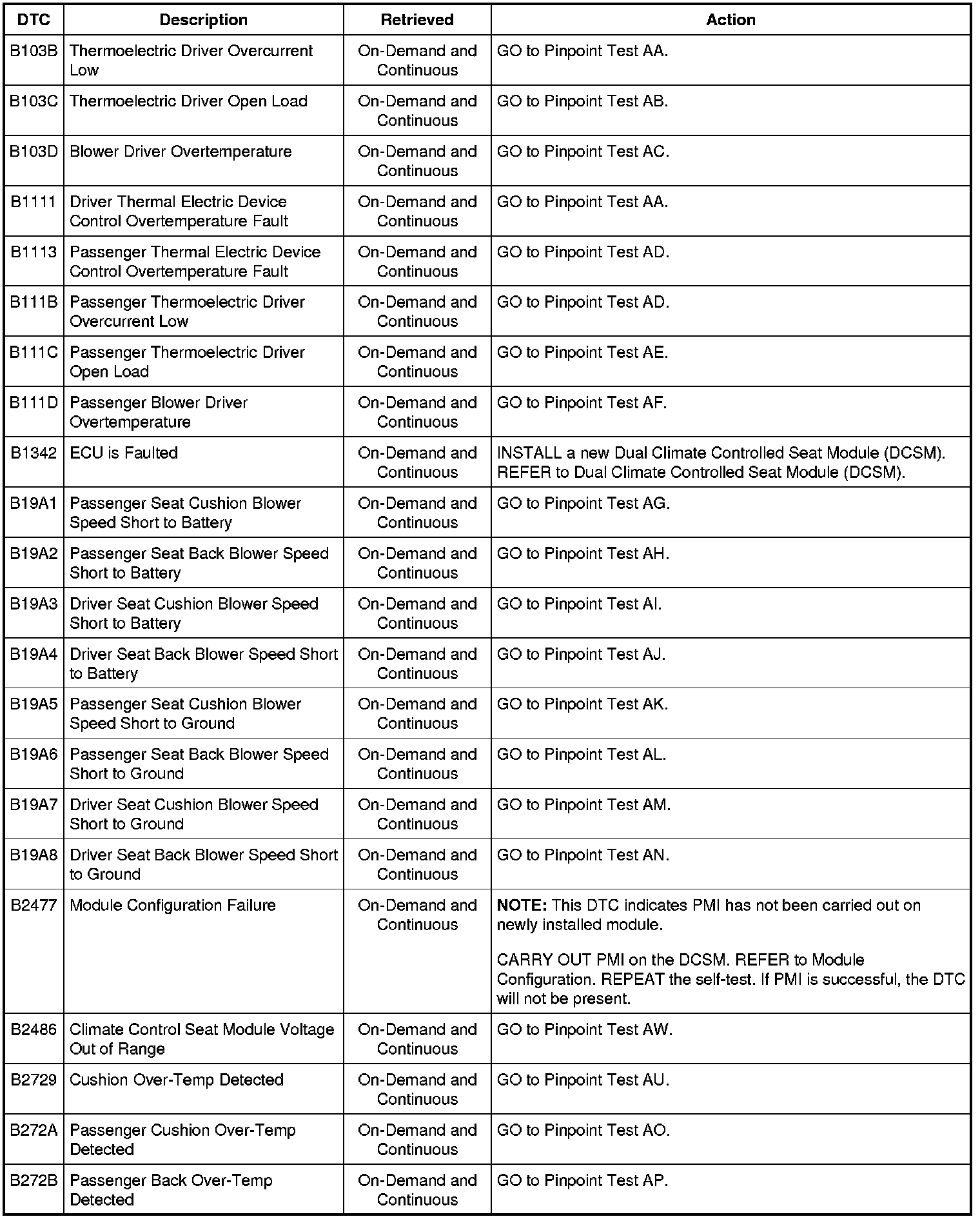

Dual Climate Controlled Seat Module (DCSM) DTC Chart






NOTE: This module utilizes a 5-character DTC followed by a 2-character failure type code. The failure type code provides information about specific fault conditions such as opens or shorts to ground. Continuous Memory Diagnostic Trouble Codes (CMDTCs) have an additional 2-character DTC status code suffix to assist in determining DTC history.
