Audio Input Jack

Audio Input Jack









Removal and Installation

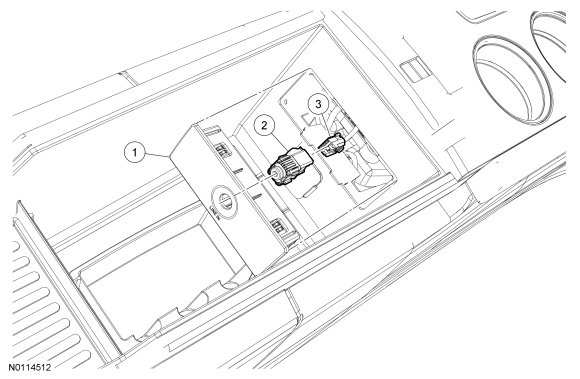

1. Using a suitable tool such as a flat-bladed screwdriver, gently pry the audio input jack bezel back and slide it out from the floor console storage bin.

2. Disconnect the audio input jack electrical connector.

3. Release the tabs and remove the audio input jack from the audio input jack bezel.





4. To install, reverse the removal procedure.
