Antenna Cable: Service and Repair

Antenna Cable - AM/FM









Removal and Installation

1. Remove the Audio Control Module (ACM). For additional information, refer to Audio Control Module (ACM) Audio Control Module (ACM).

2. Remove the front headliner.

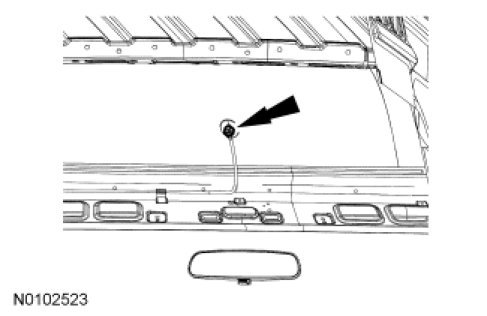

3. Loosen the bolt completely and disconnect the AM/FM antenna cable from the AM/FM antenna.

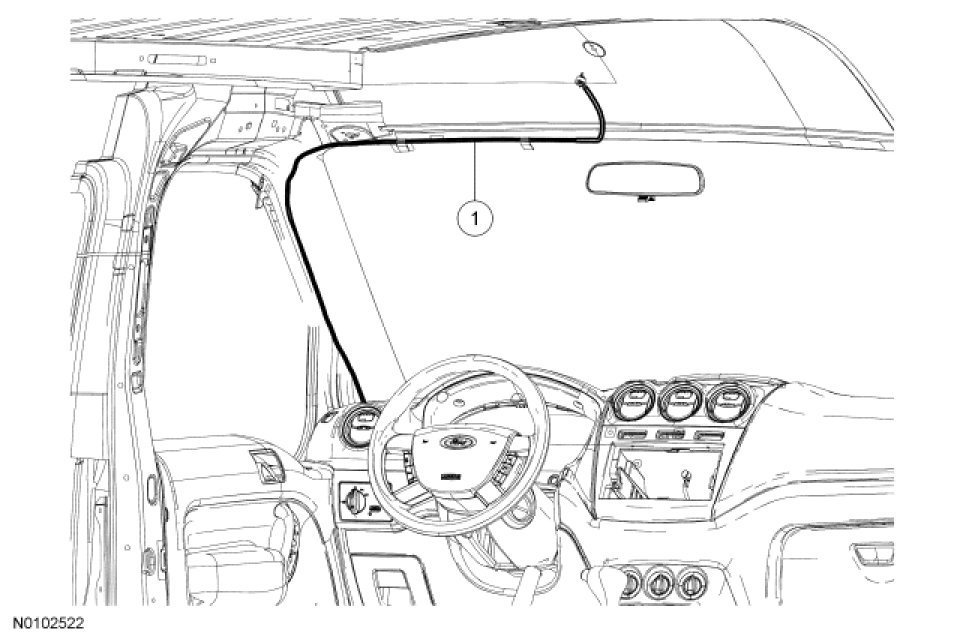

4. Remove the AM/FM antenna cable.

5. To install, reverse the removal procedure.
