Instrument Panel Dimmer Switch: Notes

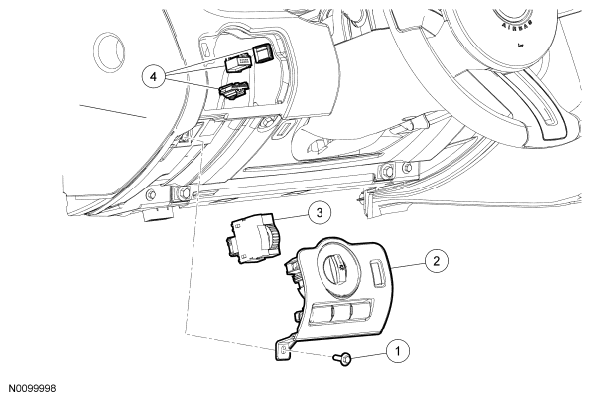

Fig 1: Instrument Panel Dimmer Switch And Switch Bezel With Screw And Electrical Connector
G06403497Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W705314 Switch bezel screw
2 7804338 Switch bezel
3 11691 Instrument panel dimmer switch
4 - Electrical connectors (part of 14401)
