Instrument Panel Cluster (IPC): Notes
NOTE:

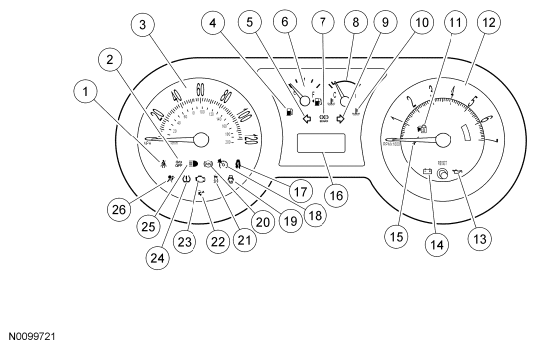

Base 4.0L Instrument Panel Cluster (IPC) shown.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt warning indicator |
| 2 | - | Overdrive (O/D) off indicator |
| 3 | - | Speedometer |
| 4 | - | Low fuel warning indicator |
| 5 | - | LH turn indicator |
| 6 | - | Fuel gauge |
| 7 | - | Brake warning indicator |
| 8 | - | Engine coolant temperature gauge |
| 9 | - | RH turn indicator |
| 10 | - | Engine over temperature warning indicator |
| 11 | - | Anti-theft indicator |
| 12 | - | Tachometer |
| 13 | - | Low oil pressure warning indicator |
| 14 | - | Charging system warning indicator |
| 15 | - | Powertrain malfunction (wrench) indicator |
| 16 | - | Integrated circuit display |
| 17 | - | Traction control indicator |
| 18 | - | Speed control indicator |
| 19 | - | Door ajar warning indicator |
| 20 | - | ABS warning indicator |
| 21 | - | Traction control off indicator |
| 22 | - | Check fuel cap fill indicator |
| 23 | - | Malfunction Indicator Lamp (MIL) |
| 24 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 25 | - | High beam indicator |
| 26 | - | Air bag warning indicator |
NOTE:

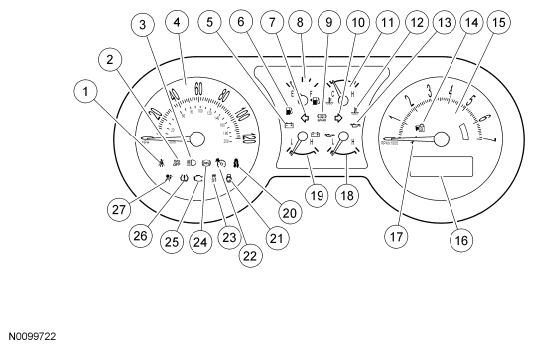

4.6L message center IPC
shown.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt warning indicator |
| 2 | - | O/D off indicator |
| 3 | - | High beam indicator |
| 4 | - | Speedometer |
| 5 | - | Charging system warning indicator |
| 6 | - | Low fuel warning indicator |
| 7 | - | LH turn indicator |
| 8 | - | Fuel gauge |
| 9 | - | Brake warning indicator |
| 10 | - | RH turn indicator |
| 11 | - | Engine coolant temperature gauge |
| 12 | - | Engine over temperature warning indicator |
| 13 | - | Low oil pressure warning indicator |
| 14 | - | Anti-theft indicator |
| 15 | - | Tachometer |
| 16 | - | Message center display area |
| 17 | - | Powertrain malfunction (wrench) indicator |
| 18 | - | Oil pressure gauge |
| 19 | - | Voltage gauge |
| 20 | - | Traction control indicator |
| 21 | - | Door ajar warning indicator |
| 22 | - | Speed control indicator |
| 23 | - | Traction control off indicator |
| 24 | - | ABS warning indicator |
| 25 | - | MIL |
| 26 | - | TPMS warning indicator |
| 27 | - | Air bag warning indicator |
NOTE:

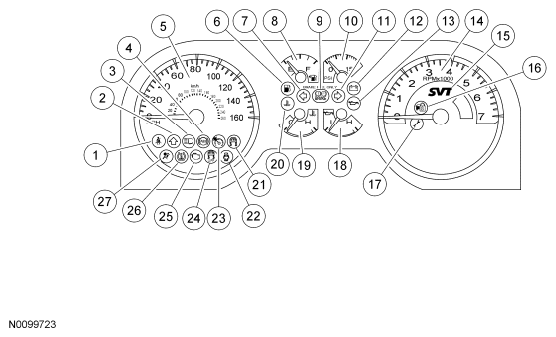

Shelby GT 500 (5.4L) and message center IPC
shown.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt warning indicator |
| 2 | - | Upshift indicator |
| 3 | - | High beam indicator |
| 4 | - | ABS warning indicator |
| 5 | - | Speedometer |
| 6 | - | Low fuel warning indicator |
| 7 | - | LH turn indicator |
| 8 | - | Fuel gauge |
| 9 | - | Brake warning indicator |
| 10 | - | Boost gauge |
| 11 | - | RH turn indicator |
| 12 | - | Charging system warning indicator |
| 13 | - | Low oil pressure warning indicator |
| 14 | - | Tachometer |
| 15 | - | Performance shift indicator |
| 16 | - | Anti-theft indicator |
| 17 | - | Powertrain malfunction (wrench) indicator |
| 18 | - | Oil pressure gauge |
| 19 | - | Engine coolant temperature gauge |
| 20 | - | Engine over temperature warning indicator |
| 21 | - | Traction control indicator |
| 22 | - | Door ajar warning indicator |
| 23 | - | Speed control indicator |
| 24 | - | Traction control off indicator |
| 25 | - | MIL |
| 26 | - | TPMS warning indicator |
| 27 | - | Air bag warning indicator |
NOTE:
The Smart Junction Box (SJB) is also known as the Generic Electronic Module (GEM).
The Instrument Panel Cluster (IPC) is available either with a full function message center (identified by the 3-button message center switch), or with a base IPC (identified by the single stem reset button in the IPC ). The IPC contains gauges, informational indicators and warning indicators that are designed to provide the driver with system status and to alert the driver that certain conditions exist in the vehicle.
The IPC uses a message center display area for basic informational items such as the odometer and trip odometer and for the text based message center display information.
