Brake Pressure Control Valve: Material

MATERIAL SPECIFICATIONS TABLE

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada)	WSS-M6C62-A or WSSM6C65-A1

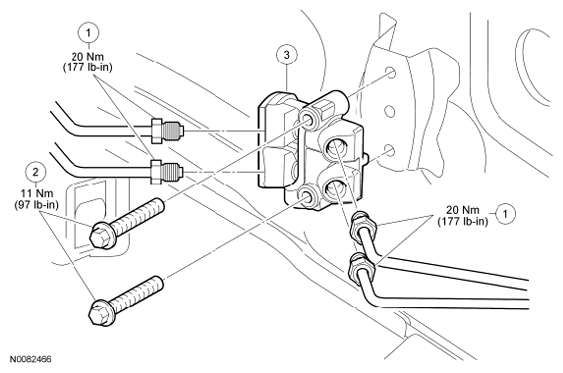

Fig 1: Identifying Brake Pressure Control Valve Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION TABLE

Item	Part Number	Description
1	-	Brake pressure control valve brake tube fittings (part of 9J279)
2	W711239	Brake pressure control valve bolts (2 required)
3	43900	Brake pressure control valve
