Instrument Panel: Removal

Automatic transmission

1. Remove the selector lever. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .

   Manual transmission

2. Remove the gearshift lever. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .

   All vehicles

3. Depower the Supplemental Restraint System (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING
4. Remove the SRS module.
   • Remove the 3 SRS  module bolts.
   • Disconnect the electrical connectors.
5. Disconnect the park brake lever electrical connector.
6. Remove the 3 wire harness pin-type retainers.
7. Remove the LH and RH A-pillar trim panels and front scuff plate trim panels. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
8. Remove the RH and LH lower cowl trim panels.
   • Remove the 4 lower cowl trim panel retainers.
9. Remove the hood release handle.
   • Remove the hood release handle bolt.
10. Rotate the steering wheel to gain access to the upper steering column shaft-to-lower steering column shaft bolt.
11. Remove and discard the upper steering column shaft-to-lower steering column shaft bolt.
12. Rotate the steering wheel until the front wheels are in the straight-ahead position.
13. Remove the steering wheel. For additional information, refer to STEERING COLUMN .
14. Detach the upper steering column shaft from the lower steering column shaft.
15. Remove the ground wire bolt and disconnect the 3 electrical connectors and the antenna cable located at the RH lower cowl.

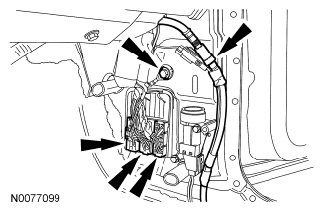

    Fig 1: Locating Ground Wire Bolt And Electrical Connectors And Antenna Cable

    Courtesy of FORD MOTOR CO.
16. Disconnect the blower motor electrical connector.
    • Remove the wire harness pin-type retainer from the heater core and evaporator core housing.
17. Lower the glove compartment door.
    • Open the glove compartment door.
    • Press the 2 glove compartment door retaining tabs and fully lower the glove compartment door.
    Fig 2: Locating Glove Compartment Door Retaining Tabs

    Courtesy of FORD MOTOR CO.
18. Disconnect the electrical connector located on the heater core and evaporator core housing.
19. Close the glove compartment door.
    • Lift upward on the glove compartment door.
    • Press the 2 glove compartment door retaining tabs and fully close the glove compartment door.
20. Disconnect the Brake Pedal Position (BPP) sensor electrical connector.

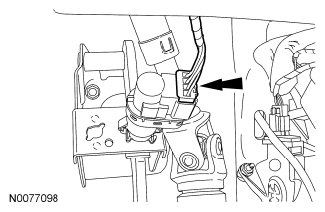

    Fig 3: Locating Brake Pedal Position Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
21. Disconnect the 5 Smart Junction Box (SJB) electrical connectors and the LH bulkhead electrical connector.
    Fig 4: Locating Smart Junction Box Electrical Connectors And LH Bulkhead Electrical Connector

    Courtesy of FORD MOTOR CO.
22. Remove the lower ground wire bolt and disconnect the 3 electrical connectors at the LH lower cowl.

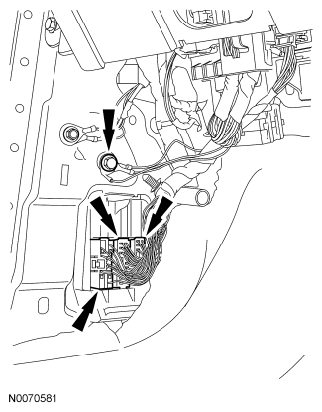

    Fig 5: Locating Lower Ground Wire Bolt And Electrical Connectors

    Courtesy of FORD MOTOR CO.
23. Remove the LH instrument panel side bolt cover.
24. Remove the LH instrument panel side bolt.
25. Remove the instrument panel upper cowl cover.
26. NOTE: When removing the instrument panel upper bolt, care must be taken to prevent damage to the windshield.

    Remove the instrument panel upper cowl bolt.

27. Remove the LH and RH rear footwell duct connector pushpin retainers.
28. Remove the 6 LH and RH instrument panel support bracket bolts.
29. Remove the LH and RH instrument panel support brackets.
30. Remove the rear footwell duct extension.
31. Remove the 6 LH and RH instrument panel bolts.
32. NOTE: To avoid damage to the instrument panel, an assistant is required when carrying out this step.

    Remove the instrument panel.

    • Transfer parts as needed.
