Removal and Replacement

Clutch Slave Cylinder









Removal

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

1. Remove the transaxle. For additional information, refer to Manual Transmission/Transaxle.

2. Clean any grease and foreign material from the input shaft.

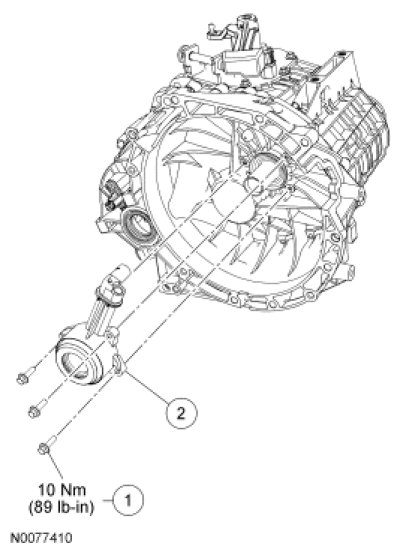

3. Remove the 3 clutch slave cylinder bolts and the clutch slave cylinder. Discard the clutch slave cylinder.

Installation

1. NOTE: Do not apply grease on any area of the clutch slave cylinder.

Install a new clutch slave cylinder and the 3 clutch slave cylinder bolts.

- Tighten to 10 Nm (89 lb-in).

2. Install the transaxle. For additional information, refer to Manual Transmission/Transaxle.

3. Bleed the clutch hydraulic system. For additional information, refer to Manual Transmission/Transaxle &/or Clutch, M/T.
