Oil Level Indicator and Tube




Oil Level Indicator and Tube

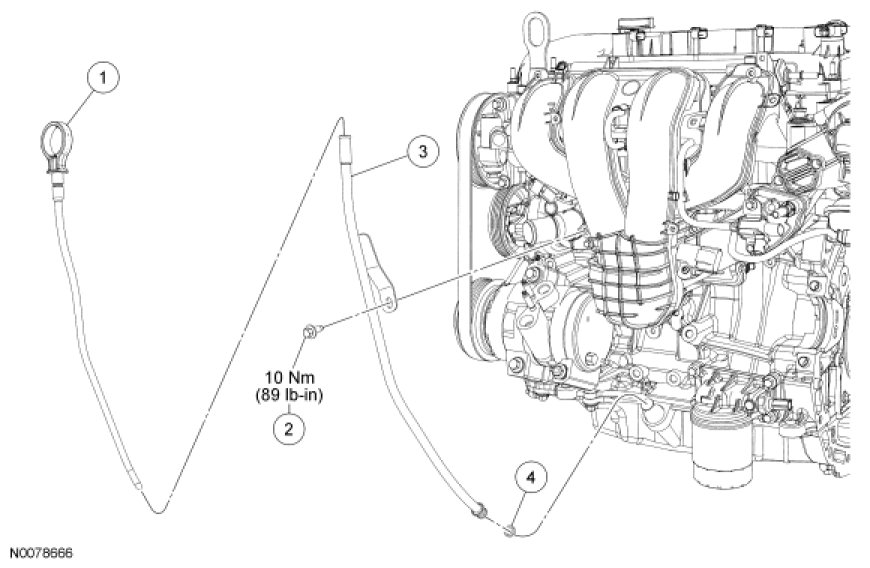

Removal and Installation

1. Remove the oil level indicator and position aside.

2. Remove the oil level indicator tube bolt.
- To install, tighten to 10 Nm (89 lb-in).

3. Remove the oil level indicator tube and discard the O-ring seal.
- To install, lubricate the new O-ring seal with clean engine oil.

4. To install, reverse the removal procedure.
