Removal and Replacement

Flexplate

Removal and Installation

1. Remove the transmission. For additional information, refer to Automatic Transmission/Transaxle &/or Transmission Control Systems.

2. Remove the 6 bolts and the flexplate.

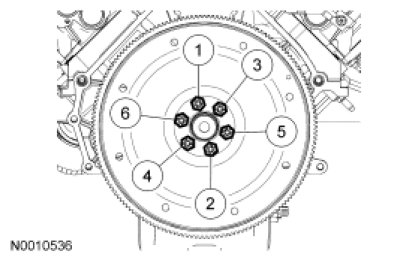

- To install, tighten to 80 Nm (59 lb-ft) in the sequence shown.





3. To install, reverse the removal procedure.
