Headlamp Switch: Service and Repair

Headlamp Switch

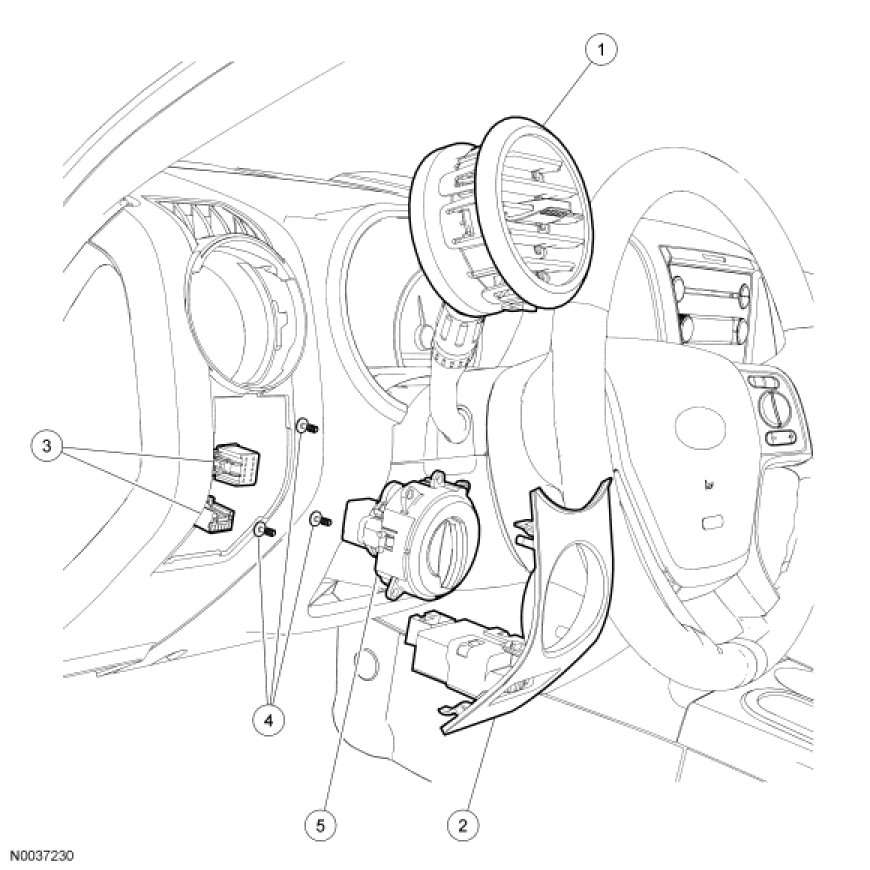

Removal and Installation

1. Remove the driver side register.

2. Remove the headlamp switch and bezel as an assembly.
- Disconnect the electrical connectors.

3. Remove the 3 screws and the headlamp switch.

4. To install, reverse the removal procedure.
