Interior Lamp - Front

Interior Lamp - Front









Removal and Installation

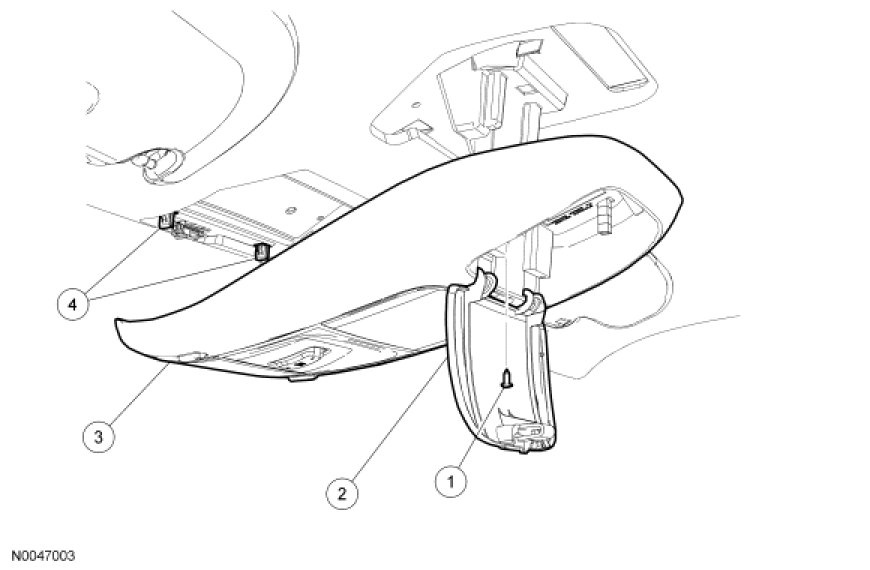

1. NOTE: Use a small screwdriver to pry open the garage door opener bin.

Open the rear overhead console storage or garage door opener bin to access the retaining screw.

- Remove the screw.

2. Pull the front of the overhead console down and remove the console from the console retaining clips.
- Disconnect the electrical connector(s).

3. To install, reverse the removal procedure.
