Crankshaft Rear Seal

Crankshaft Rear Seal









Removal

1. Remove the flexplate. For additional information, refer to Flexplate Removal and Replacement.

2. Remove the engine-to-transmission spacer plate.

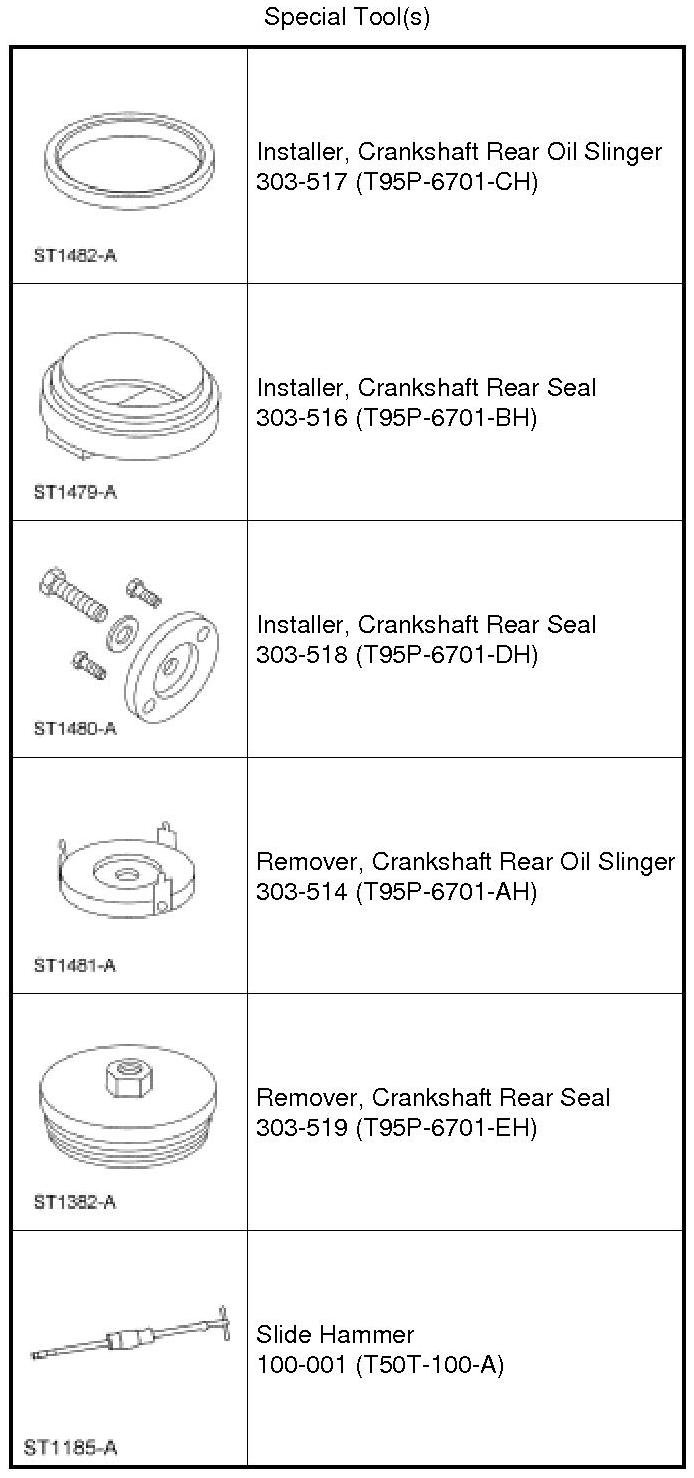

3. Using the Slide Hammer and the Crankshaft Rear Oil Slinger Remover, remove the crankshaft oil slinger.
- Discard the crankshaft oil slinger.





4. Using the Slide Hammer and the Crankshaft Rear Seal Remover, remove the crankshaft rear seal.
- Discard the crankshaft rear seal.





Installation

1. NOTE: Lubricate the inner lip of the crankshaft rear seal with clean engine oil.

Using the 2 Crankshaft Rear Seal Installers, install the crankshaft rear seal.





2. Using the 2 Crankshaft Rear Seal Installers and the Crankshaft Rear Oil Slinger Installer, install the crankshaft rear oil slinger.





3. Install the engine-to-transmission spacer plate.

4. Install the flexplate. For additional information, refer to Flexplate Removal and Replacement.
