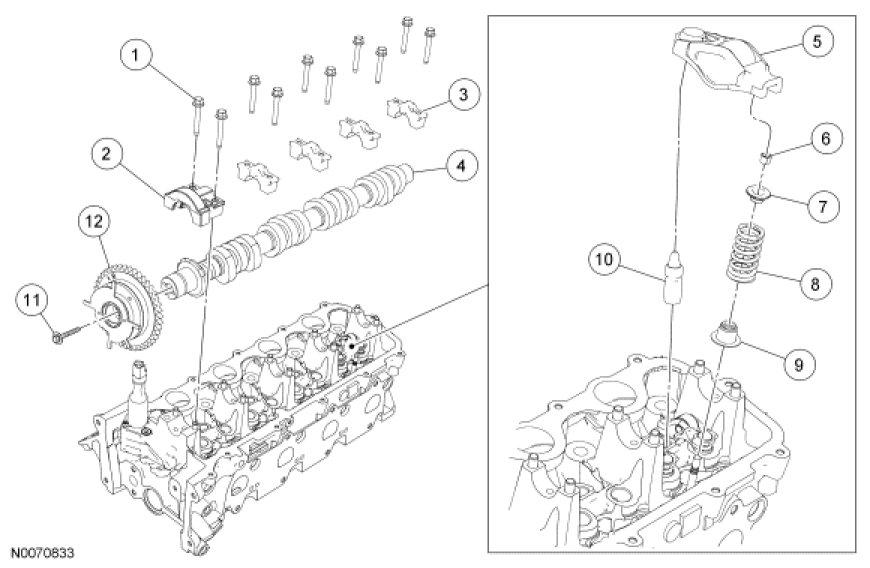

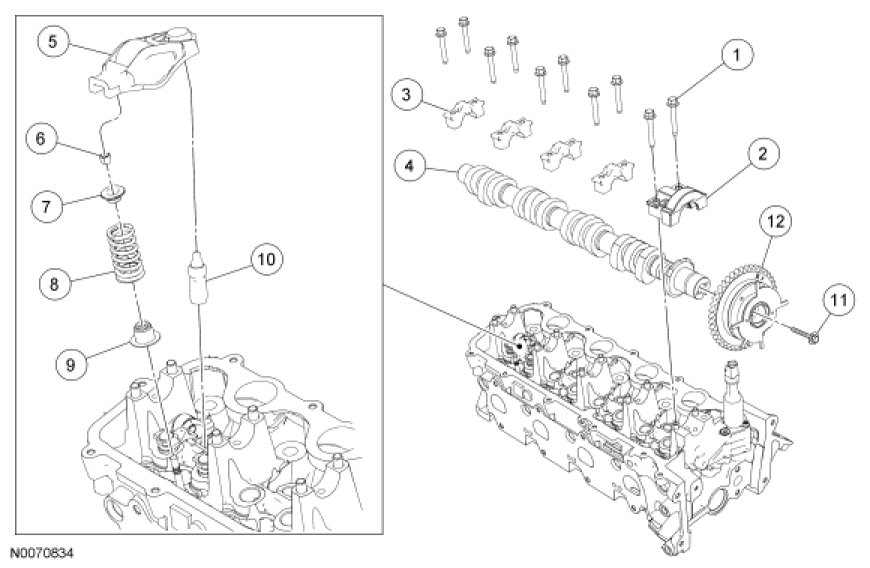

Home >> Ford >> 2010 >> Explorer AWD V8-4.6L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Camshaft, Lifters and Push Rods >> Camshaft >> Service and Repair >> Removal and Replacement >> Valve Train Components - Exploded View
